Open Brain Skyfly window.

BrainSkyfly is separate application located

Applications/IBVA4/VJ application/BrainSkyfly

Works as standalone and/or receive "Distributed Brain VJ Notifications" from IBVA4 to move around 3D virtual world.

By default setup automatically sand left and right brain wave peaks Brain VJ Notification to OSX system.

then BrainSkyfly works left and right turn based on left and right brain wave peaks.

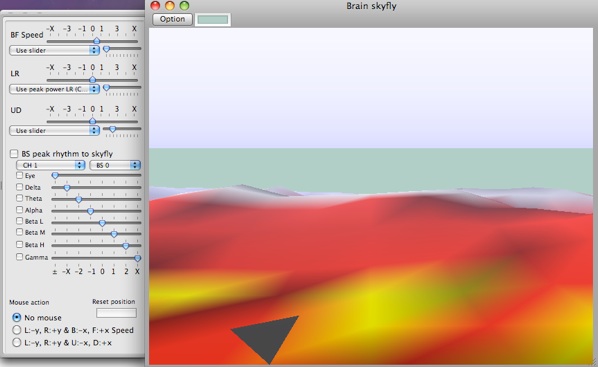

Click Option shows Drawer to set how to control Brainskyfly.

Need to reset to send Brain VJ Notification in the "Device" Preference in the IBVA4 for change navigation.

17.8: connecting with IBVA4

"File/New" make new window.

"File/New to  Front" make new window at the Front top.

"Edit/Set Window Alpha .. " to set window alpha.

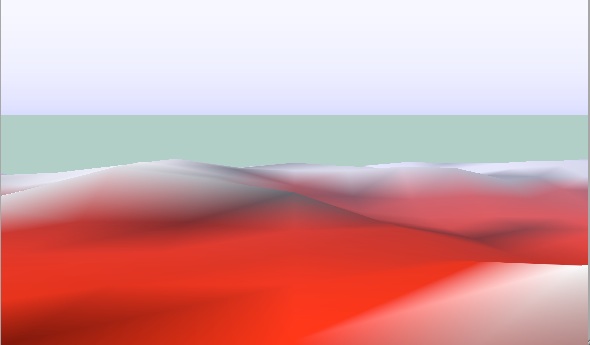

Flying VR world by brain wave.

In case close window and open again, then shows different image of VR world.

Click Option shows drawer for set brain interaction.

17.2: BF Speed.

Use slider to move Back (-) and Forward (+).

Select popup menu for select Mode : how to move Back and Forward.

Small slider at left of popup menu works with

Mode: Use peak power L, Use peak power R, Use peak power LR, Use peak frequency L, Use peak frequency R, Use peak frequency LR.

Use slider

Use peak power L

Use peak power R

Use peak power LR

Use peak frequency L

Use peak frequency R

Use peak frequency LR

Use BS peak rhythm : need to setup : 17.5: BS peak rhythm to skyfly :

need to open "3D Water Fall BS Mixer" window

17.3: LR.

Use slider to move Left (-) and Right (+).

Select popup menu for select Mode : how to move Left and Right.

Small slider at left of popup menu works with

Mode:Use peak power L, Use peak power R, Use peak power LR, Use peak frequency L, Use peak frequency R, Use peak frequency LR.

Use slider

Use peak power L

Use peak power R

Use peak power LR

Use peak frequency L

Use peak frequency R

Use peak frequency LR

Use BS peak rhythm : need to setup : 17.5: BS peak rhythm to skyfly : need to open "3D Water Fall BS Mixer" window

17.4: UD

Use slider to move Up (-) and Down (+).

Select popup menu for select Mode : how to move Up and Down.

Small slider at left of popup menu works with

Mode: Use peak power L, Use peak power R, Use peak power LR, Use peak frequency L, Use peak frequency R, Use peak frequency LR.

Use slider

Use peak power L

Use peak power R

Use peak power LR

Use peak frequency L

Use peak frequency R

Use peak frequency LR

Use BS peak rhythm : need to setup : 17.5: BS peak rhythm to skyfly : need to open "3D Water Fall BS Mixer" window

17.5: BS peak rhythm to skyfly

Select "BS peak rhythm to skyfly" : Use selected brain wave channel and it's BS number trigger to select control speed.

"Eye", "Delta", "Theta", "Alpha", "SMR", Beta M", "Beta H" button will check automatically that depend on BS peak rhythm.

Then go to slider point which is selected  control speed.

Move slider for select  control speed for each brain wave rhythm.

+- : use number as (sw count number -32)

-X : use number as -(sw count number )

-2 : speed - 2

-1 : speed - 1

0 : speed 0

1 : speed 1

2 : speed 2

X : use number as (sw count number )

* Select  control speed need to use BS total count number, mean need to open "3D Water Fall BS Mixer" window and need to setup BS (Brain Switch).

See: 9: 3D Water Fall BS Mixer , 11: New Brain Note, 13: Brain switch mixer setup, 14: Brain SW inspector.

17.6: Mouse action

No mouse : doesn't work mouse control

-y & y is mouse move left & right, -x & x is mouse move down & up

L:-y, R:+y, & B:-x, F:+x Speed

L:-y, R:+y, & U:-x, D:+x

17.7: Reset position

Reset VR position

In case keep continue Back or Forward then stop at that image. need to make reset to start again.

17.8: connecting with IBVA4

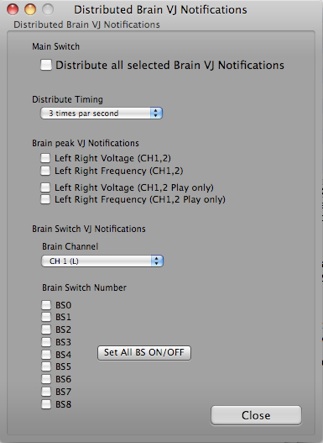

in the IBVA4 application "BrainVJ / Show Brain VJ Notifications Setup" to set ON brain VJ notification to interact with brain wave.

To  use this for distribute brain VJ notification.

BrainSkyfly, AU Brain component and other application & plugin will receive this notification to work for brain interactive.



Main Switch ON to start distribute brain VJ notification.

All human interface action (IBVA4 and receive application) goes slow to this. In case not use this recommended to make Switch OFF.

3 times par second is default to make notification. To change this select popup menu.

Click Left Right peak V make "Left Right peak Voltage" notification.

Click Left Right peak F make "Left Right peak Frequency" notification.

Total 4 brain peak notification.

Brain Switch VJ Notification to select brain channel brain switch Left, Right and coherence.

then click BS1 to BS8 makes notification.

Click "All BS ON/OFF" set BS1 to BS8 ON/OFF for selected brain channel.

Each brain channel has BS1 to BS8, total 24 brain switch notification.
