BrainDJVJ iPhone Application




Double click screen makes different render position display.


Triple click screen makes different wave display.


Finger touch and move makes display rotation.


2 Finger gesture control makes graph size change.


iPhone rotation makes graph gravity effect.

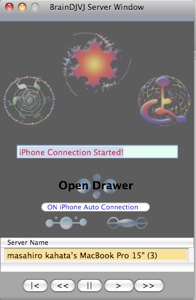

In case Run BrainDJVJQuartzComposer Mac BrainDJVJ server application then wait connection line shows server name.



2:

use with server application control iTunes : 4:01

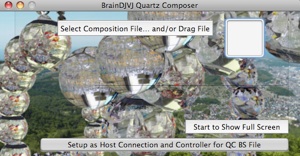

Free Download for Mac BrainDJVJ server application and sample Quartz Composer files.

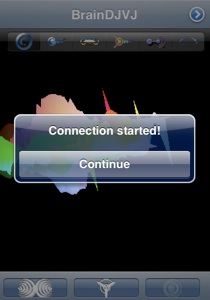

Click Mac server name to connect it.

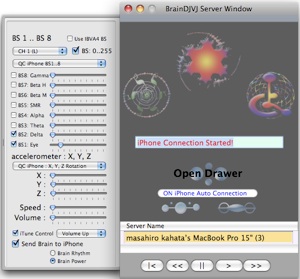

When click top line control button ICON and/or iPhone movement happened BrainDJVJ Sever Window is reacting.

iTunes will control too. ( need to check iTunes Control )




BS1 and BS2 slider will move by finger touch and movement.

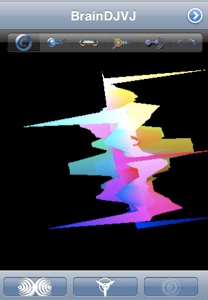

Click right side of bottom ICON Line will start recording sound. Left side is play back sound.

( sound can not save to some name. always over write by new sound recording. )

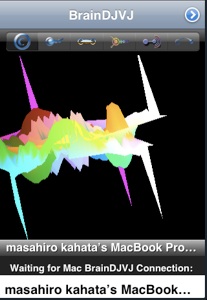

Display render images and color will change by sound. also Speed and Volume slider is move by sound peak and level.





Put some sample Quartz Composer animation to Drag ICON position.


3:

control Quartz Composer animation : 3:53



Animation will change by iPhone control.





DJVJ window.

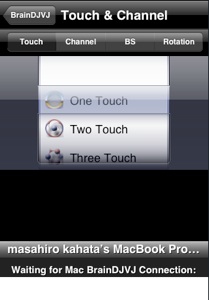

Touch & Channel window.


Setup window.

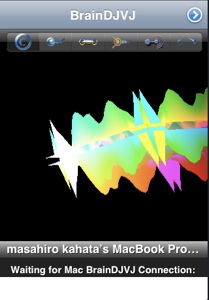

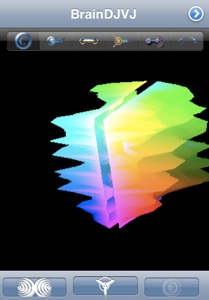

OpenGLES mode.




Different BrainDJVJ Setup



BrainDJVJ with Mac


Free Download for Mac BrainDJVJ server application and sample Quartz Composer files.



BrainDJVJ & IBVA system



6:

with IBVA application : 3:20




7:

IBVA application Brain switch control :   5:15














© 2009, 2010 Psychic Lab Inc. masahiro kahata

BrainDJVJ

BrainDJVJ application for iPhone and iPod touch.


Multi function utility Application.


This utility application is for people who are interested in creative mind, open information and for new type of communication world.

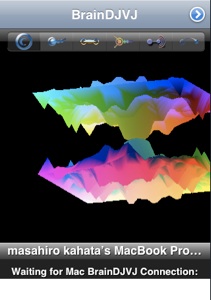

Sound reacting OpenGLES 3D graph.

Acceleration control animation.

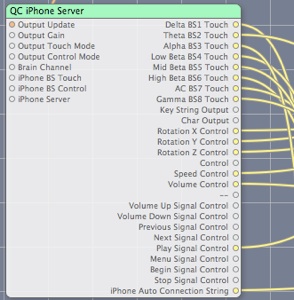

Remote controller for Quartz composer animation with Quartz Composer iPhone plugin for Mac. Acceleration X,Y,Z, sound peak and level, 1,2,3,4 and 8 ch touch animation position and 8 switch control function to Quartz composer iPhone plugin. Also iTunes sound remote control.


Can not control iTunes QC Visualizer animation from iPhone. Need to use AudioCodex to do so. Need to make own Quartz composer animation with Quartz Composer iPhone plugin.



Remote sound Mix for GarageBand, AU Lab, etc. use with Audio Unit Brain Plugin.

1,2,3,4 and 8 ch touch animation Mix control.


BrainDJVJ Quartz Composer server application, Quartz Composer iPhone plugin, Audio Unit Brain plugin and sample files are all free download for Mac system.


IBVA4 brain wave interactive system user can see brain wave rhythm in iPhone display in Bar graph or OpenGLES 3D waterfall graph.

With IBVA4 system can do Brain wave DJVJ and iPhone remote control together.



Current BrainDJVJ Wi-fi connection limitation.

Max continuously Wi-fi connection time is 30 minute for battery conservation.

Currently need to use external battery or power connection in case need to use over 30 minute continuously Wi-fi connection to Mac.



* Quartz Composer and AU Lab Application is included in the OSX10.5, OSX10.6 system DVD developer folder.

*GarageBand is included in the iLife 08/09.

*AudioCodex by MachineCodex.





Movie:


1:

acceleration control animation : 1:04




2:

use with server application control iTunes : 4:01




3:

control Quartz Composer animation : 3:53




4:

Control GarageBand with AU Brain plugin: 4:01




5:

OpenGLES display  and recording sound : 1:55




6:

with IBVA application : 3:20




7:

IBVA application Brain switch control :   5:15











How to Start BrainDJVJ application.


1:

acceleration control animation : 1:04

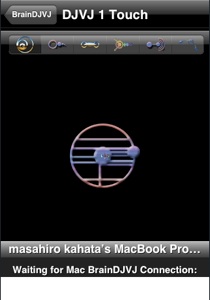

First time start BrainDJVJ application, goes too DJVJ 1 Touch and acceleration control animation mode. And waiting to connect to Mac server BrainDJVJ application via Wifi.

Bottom white Text line is for this connection.

rotate iPhone makes animation movement and size changes.

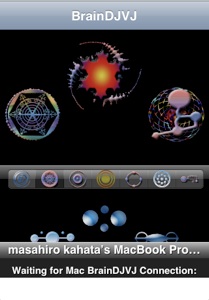

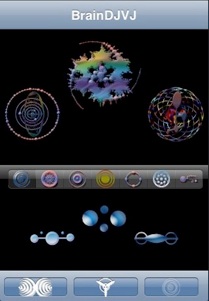

Click left top “BrainDJVJ” button goes to main control window BrainDJVJ.









Click center line button circle ICON, 1, 2, 3, 4, 8 goes to DJVJ Touch that number.

Left side button is default setup mode.

Right side button is control mode.

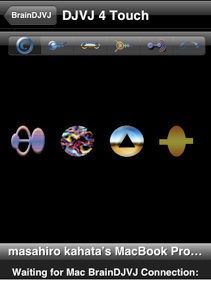

In case click 4 ICON then goes to DJVJ 4 Touch.







left side is 1, right side is 4. after made wifi connection, this touch animation position information goes to Mac server application.

Low position is 0, high position is 255.











Click Left big ICON goes to mode selection pick up window.

Can select DJVJ Touch number with pickup. This setup goes to left side center line button control mode and also center top big ICON click mode.

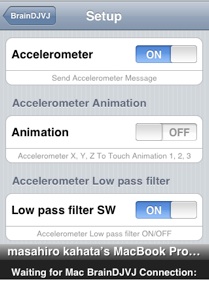

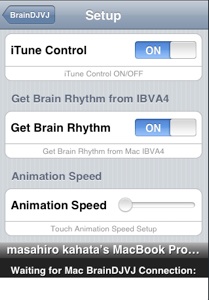

Go back to main control BrainDJVJ screen then click Right Big ICON goes to setup window.









Make Switch OFF for Accelerometer Animation then stop Animation move by iPhone move. Then only finger can move touch animation.



Accelerometer ON mean send message to Mac server application.

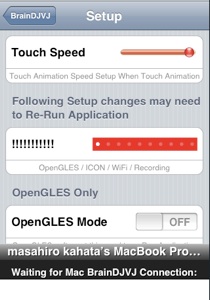

Make Switch ON for OpenGLES Only. Then quit BrainDJVJ application, Re-Run application.


5:

OpenGLES display  and recording sound : 1:55
