BlueTooth Port Setup for Tiger (OSX10.4.X) :
Only first time use IBVA, need to create Bluetooth port called pairing procedure.
Following (1 to 10) is step by step process for this.
Once setup Bluetooth port, then only No. 11 setup need for each time use.
* In case Bluetooth port doesn't work, then need to setup following process (1 to 10) again.
0: Make power switch ON IBVA unit (amplifier and bluetooth box)
1: Open "System Preferences..."

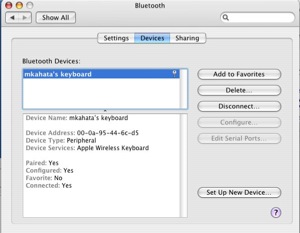

2: Click "Bluetooth"
Select 'Device" shows current bluetooth Devices.
Click "Set up new device..".
3: Click "Continue" in the Bluetooth Setup Assistant.

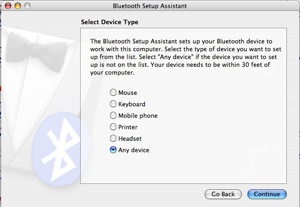

4: Select "Any device"
Then click "Continue" in the Bluetooth Setup Assistant.

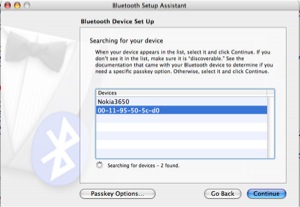

5: Select "00-11-95-50-5c-d0" and/or "BlueVAS_H".
this number may different depend on Bluetooth IBVA system and system condition.
After select device which you like to make pairing click "Continue" in the Bluetooth Setup Assistant.

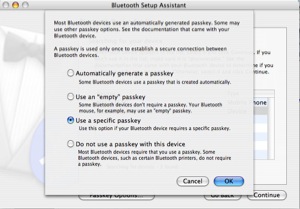

6: Click "Passkey Options.." in the Bluetooth Setup Assistant.
select "Use a specific passkey" then click "OK"
7: Click "Continue".

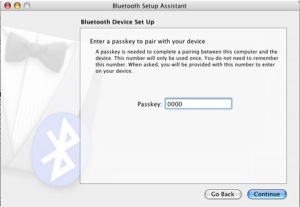

8: Click "Continue", type "0000" as Passkey.
9: Click "Continue".
10: Click "Quit".
Start to show raw wave graph and start recording brain wave.
