BlueTooth Port Setup for Leopard (OSX10.5.X) :

Only need to do this first time you use IBVA, needed to create a new Bluetooth port called pairing procedure.

Following (1 to 9) is step by step process for this.

Once you have setup new Bluetooth port, then only repeat No. 10 setup each time use.

* In case Bluetooth port doesn't work, then need to setup following process (1 to 10) again.

0: Turn power switch ON IBVA unit (amplifier and bluetooth box)

1: Open "System Preferences..."

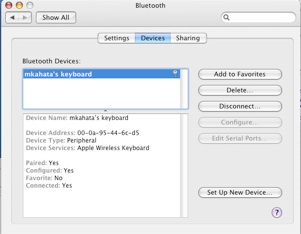

2: Click "Bluetooth"

Select 'Device" shows current bluetooth Devices.

Click "Set up new device..".

3: Click "Continue" in the Bluetooth Setup Assistant.

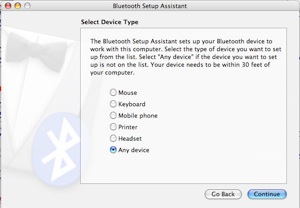

4: Select "Any device"

Then click "Continue" in the Bluetooth Setup Assistant.

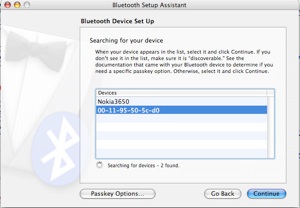

5: Select  "00-11-95-50-5c-d0" and/or "BlueVAS_H".

this number may different depend on Bluetooth IBVA system and system condition.

After select device which you like to make pairing click "Continue" in the Bluetooth Setup Assistant.

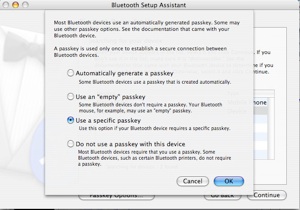

6: Click "Passkey Options.." in the Bluetooth Setup Assistant.

select "Use a specific passkey" then click "OK"

7: Click "Continue".

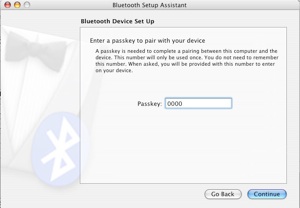

8: Click "Continue",  type "0000" as Passkey.

9: Click "Continue".

10: Click "Quit".

11: Run IBVA4 application, select  IBVA4 / Setup / Port ON.

You will see live data generating in the raw wave graph and start recording brain waves.
