IBVA

• Brain peak and Brain rhythm : two MIDI play mode with

  left, right brain wave and coherence.


• Simple setup for MIDI pay with left right brain wave peaks.


• Send MIDI to external device and internal MIDI sound play.

  works with Garage Band. easy connection to MAX and

  other application.


• 8 different brain switch setup for each left, right brain

  wave and coherence. max 128 different setup for

  each Brain peak MIDI and Brain rhythm MIDI mode.


• QuickTime movie control, 3 D surface effect with image,

  sampling sound play : by brain wave switch.


• Raw wave, 2D bar graph, 3 D water fall and other window

  can open many numbers different way.


• Continuously play MIDI with 0.01 second update

  even when graphic image update is slow speed.


• Interactive real-time brain switch setup with 2 D graph

  editing in the BrainNote Brain switch shows as 3 D Bar graph in the 3 D water fall BS window.


• 3 D water fall graph with different color, texture mapping

  and dynamic texture effect.


• Waterfall and WaterfallBS graph has Stereoscopic display window. connect to 3D TV via HDMI to see Stereoscopic display.


• 2 D bar graph image for detail frequency analysis,

  max 8192 point FFT calculation for 0.015 Hz

  frequency resolution when 120 Hz sampling.


• 120 Hz to 1920 Hz sampling frequency adjust for 0 to 900Hz frequency analysis.


• Auto brain data back up function. Get back and play brain data with Time Machine without manually save. ( only with Leopard )


• Auto selection and screen image save function. ( max 200 times )


• Live video with sound and brain data can record and save together to QuickTime movie file and BrainNote file. Open BrainNote file can pay movie automatically with time sync.


• Two person version system can show two person’s left, right and coherence simultaneously.


• External USB Serial Port control function.


• Use Loop mode continuously save brain wave and live video as sequence files.



• Brain peak and brain switch VJ Notification use for animation and sound interactive. Sample Brain skyfly VR world application with XCODE source code for study and develop own brain wave interactive animation and sound.


  1. •Quartz Composer IBVA plugin for Leopard ( Tiger Mac version is no more update. Last version is V4.4.2 )

  2. •

  3. •Audio Unit plugin with GarageBand sample file.

  4. •

  5. •MAX IBVA external for Brain DJ/VJ. XCODE V3 Source code and Sample patch files included.


• Can use original IBVA witch start ship 1991.


Following function is for only OSX10.5 .. OSX10.9

  1. •iPhone Server Window use for communicate iPhone.

  2. •Use iPhone as BS controller.

  3. •Can send Brain rhythm, Sound power to iPhone.

  4. •Sound Monitor Window.

  5. •Show Sound in the Raw wave, Bar graph and Waterfall graph Window. Left right and coherence display in the Waterfall Window.

  6. •Max 32768 Point FFT shows 0 .. 22050 Hz in 1.346 Hz resolution when 44100 Hz sampling.

  7. •Can use live sound from selected input device and/or sound from play sound file that use Audio Unit Hosting Window.

  8. •Graph / Quartz Composer Graph - Table Graph Window

  9. •BrainDJVJ / Quartz Composer Graph - Table Graph Window : sound reacting animation

  10. •Quartz Composer IBVA direct plugin for raw data output.

Current version: Jan 2014

IBVA

V5.1.1.5

for Intel Mac

OSX 10.4.11..10.11.X


IBVA4 (V4.9.9.9) is last version for

Power PC Mac: OSX 10.4.11 to 10.6.8. Also work with Intel Mac : OSX 10.4.11 to 10.11.X.

some function is limited with OSX 10.4.11


OSX application IBVA V4.1.0 : start to ship end of May 2005

© Psychic Lab Inc.  masahiro kahata

2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015




  1. •finder operation

  2. •Brain Switch box control

  3. •Graph window color, position setup

BRAIN RYTHM MIDI

BRAIN PEAK MIDI

Brain VJ

Image, QT, Sound


















Brain switch VJ Notification

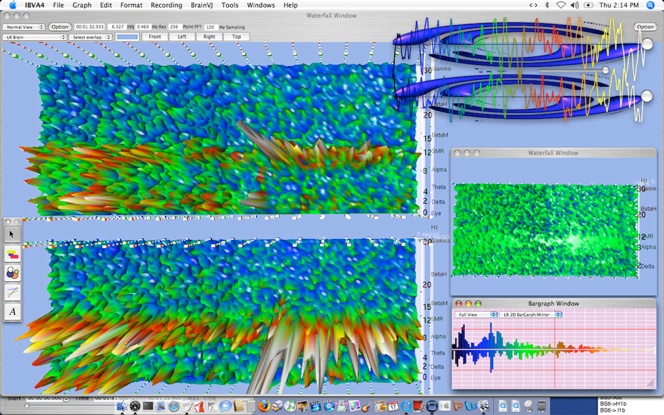

GRAPHIC WINDOW

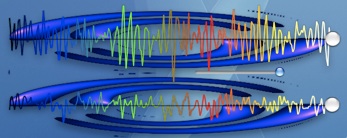

  1. 1.Raw wave

  2. 2.Bar Graph

  3. 3.Water Fall

  4. 4.Water Fall BS Mixer

  5. 5.Waterfall & WaterfallBS Stereoscopic

  6. 6.Front Top Rawwave

  1. •2D graph edit for switch

  2. •Brain SW 3D animation

  3. •Audio Unit Brain plugin

  4. •works with GarageBand, AU Lab and many music application for brain interactive gain & filter sound effect

  5. •(currently AU Lab works with Tiger)

  6. •Use Brain VJ Notification from IBVA

BRAIN SWITCH 3D MIXER  / AUDIO UNIT BRAIN PLUG IN

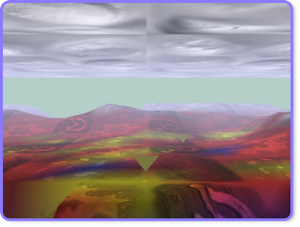

BRAIN SKY FLY

  1. •Brain wave flight in the 3D VR world

  2. •Brain Switch control

  3. •Use Brain VJ Notification from IBVA

  4. •XCODE source code included. Develop own interactive animation.

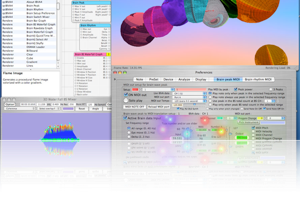

QUARTZ COMPOSER IBVA4 PLUG IN

  1. •Make brain interactive animation, VJ

  2. •live Waterfall brain wave in the QC View window.

  3. •Graphic windows, etc. can show to other window.

  4. •Play MIDI sound with animation

  5. •Works without IBVA4 application.

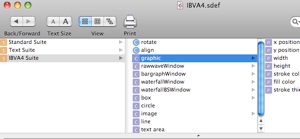

APPLE SCRIPT

  1. •MAX IBVA4 external

  2. •make own brain wave interactive application

  3. •sample patch included

  4. •XCODE V3 source code included. Develop own external.

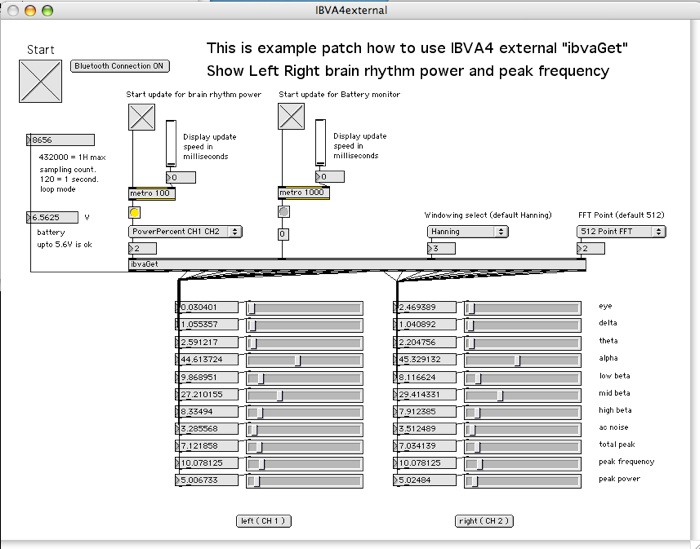

MAX EXTENAL

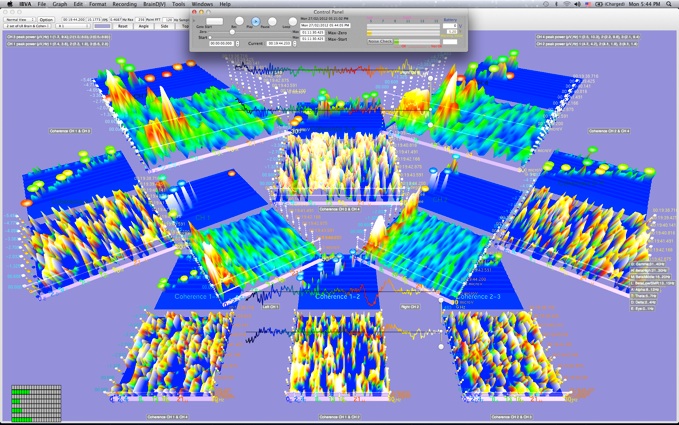

Two person system 4 ch display mode sample

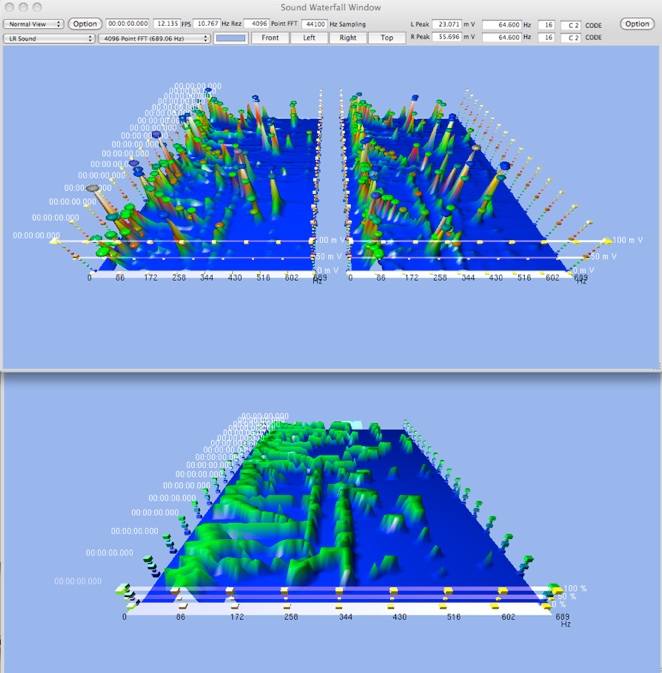

Sound Waterfall Display

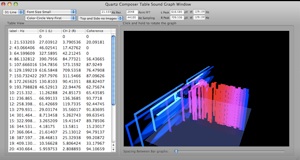

QUARTZ COMPOSER GRAPH MENU

  1. •IBVA application has QC graph window menu to play QC animation that is reacting brain wave and/or sound wave, without use QC IBVA plugin and QC application. You can make own QC animation to run with IBVA application. There is two windows, one is only show QC graph, other is show with data table.

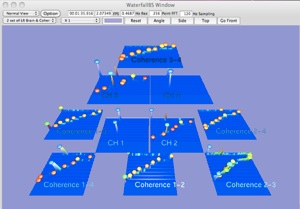

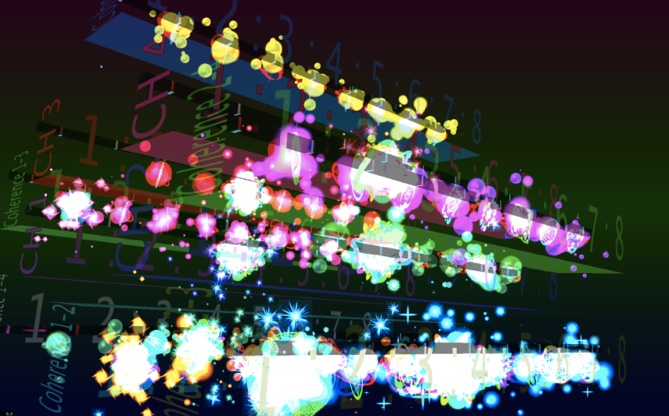

4 ch 80 Brain Switch QC animation control sample

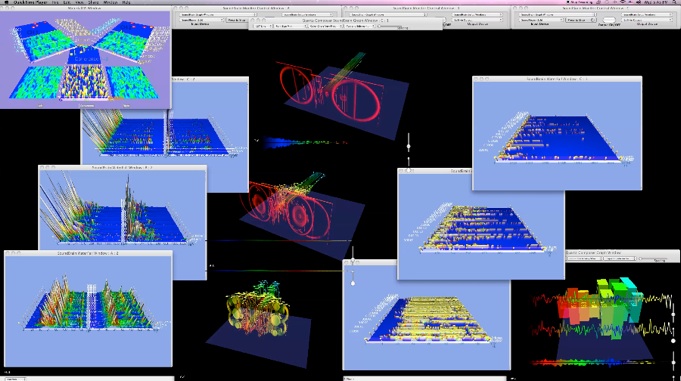

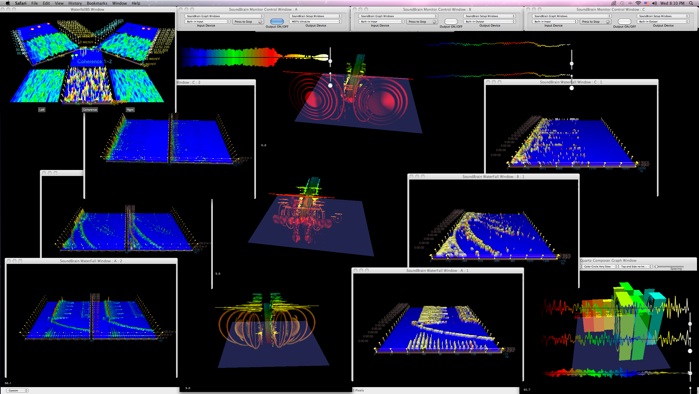

SoundBrain

  1. •Sound wave and Brain wave display with Quartz Composer animation. : Sample Movie:

  2. •Brain wave

  3. •                                                                              SoundBrainA : Low frequency ( 0 .. 172 Hz )

  4. •                                                   SoundBrainB : Midle frequency ( 0 .. 1378 Hz )

  5. •                                SoundBrainC : All frequency ( 0 .. 22050 Hz )

  6. •Sample image :

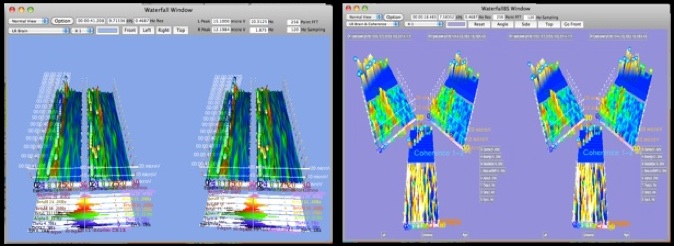

Stereoscopic Display

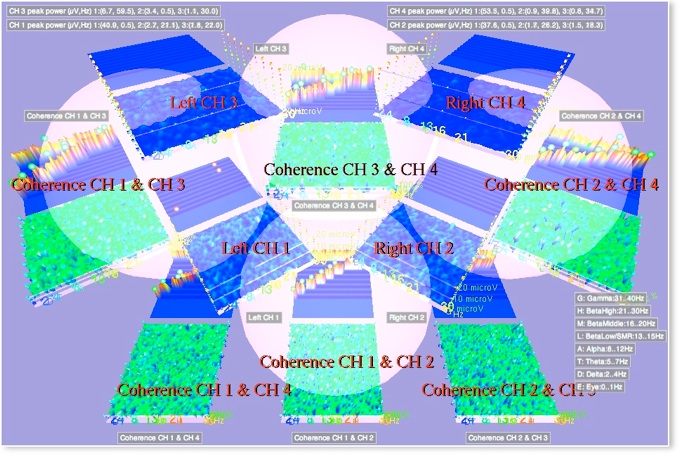

4 ch ( two person Display )

Connect to 3D TV via HDMI to see Stereoscopic display.

3D TV need to set “side by side” input mode.
