two person system
two person system
included :
one Bluetooth IBVA unit F type
one Bluetooth IBVA unit M type
one 2m audio cable.
and one IBVA4 DVD.
how to use this unit:
1: put battery to F type unit and M type unit.
2: make pairing with F type. Don't make pairing with M type. Make sure there is only one IBVA Bluetooth port name in the Mac system.
3: connect F type and M type by audio cable.
4: run IBVA4 and setup 4 ch device and select port.
use 4 ch display mode, need to use high speed Mac system.
( minimum 2 GHz Core Duo, nice speed with 3GHz Quad Mac Pro )
=======================================================
How works "two person IBVA system".
each Bluetooth IBVA connect headset to each person.
two Bluetooth IBVA is connected by wire.
two person's distance is depend on this wire.
( 2 m included, works 10 m to 20 m. standard audio mini jack cable. signal level is 0 .. 5 V. )
M type Bluetooth IBVA unit send CH 3 and CH 4 to F type Bluetooth IBVA unit.
Mac communicate to F type Bluetooth IBVA unit.
F type Bluetooth IBVA unit send CH 1, CH2 and CH 3, CH4 to Mac.
also can use as following :
use Mac A to make pairing with F type Bluetooth IBVA unit . use as standard 2 ch system. ex use brain VJ.
use Mac B to make pairing with M type Bluetooth IBVA unit . use as standard 2 ch system. ex use brain DJ.

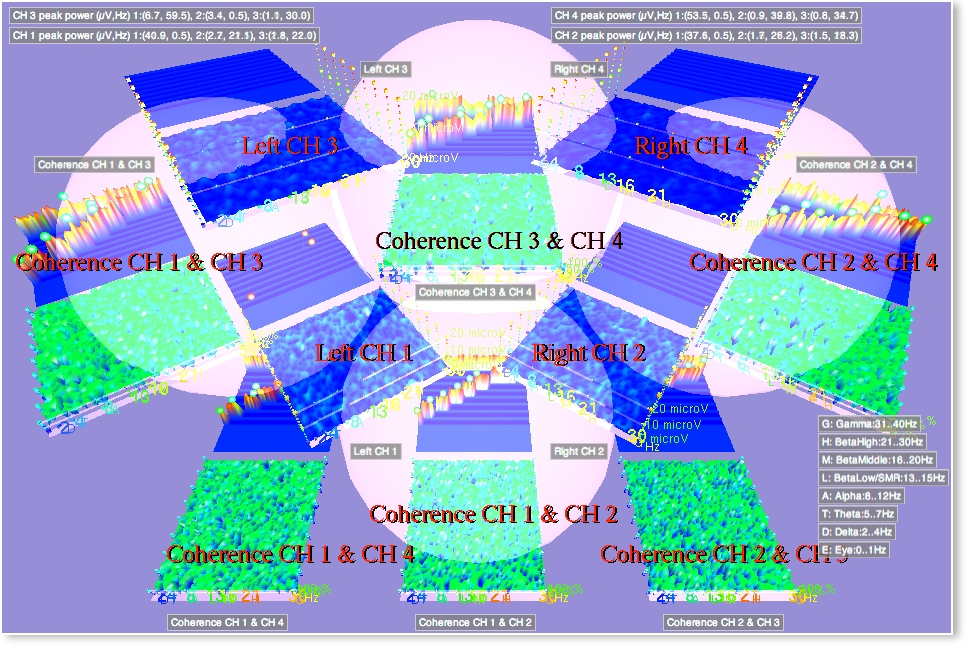

Shows :

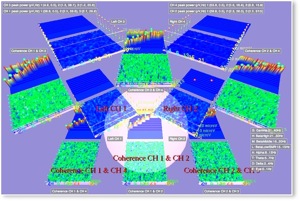

CH 1 ( person 1 left brain ), CH 2 ( person 1 right brain ) and CH 1 & CH 2 coherence

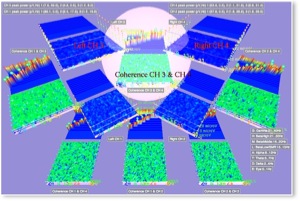

CH 3 ( person 2 left brain ), CH 4 ( person 2 right brain ) and CH 3 & CH 4 coherence

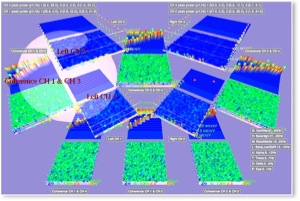

CH 1 & CH 3 coherence : coherence between person 1 left brain and person 2 left brain

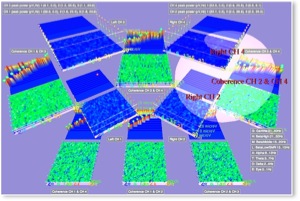

CH 2 & CH 4 coherence : coherence between person 1 right brain and person 2 right brain
CH 1 & CH 4 coherence : coherence between person 1 left brain and person 2 right brain
CH 2 & CH 3 coherence : coherence between person 1 right brain and person 2 left brain
