How to set rechargeable battery connector kit
How to set rechargeable battery connector kit

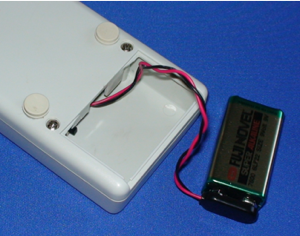

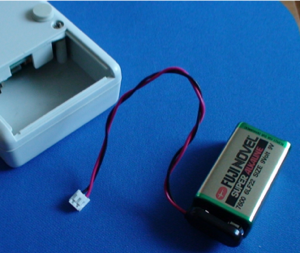

1: Original cable connection to 9V alkaline battery.
2: Battery cable connector close up.
3: Pull cable to disconnect. It’s no problem to pull cable however carefully.
4: Connector close up.

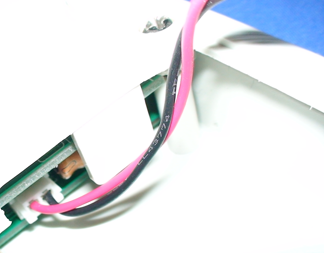

5: Connect rechargeable battery connector kit. Push connector by finger and/or use tool.
Connector’s Red cable is left, Black cable is right side ( see from this direction ).
May need some practice to do this.

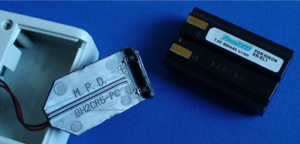

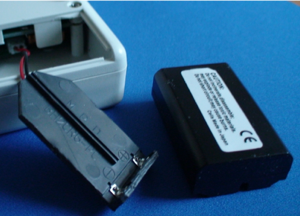

6: Put battery on the connector kit. Make sure metal part fit together.
7: Fold Battery and connector kit together use band and/or tape.
It’s depend on battery manufacture company, some battery need to do this.
Some company’s battery is no need to do this depend on slot part size.

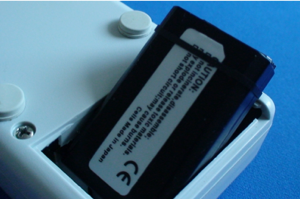

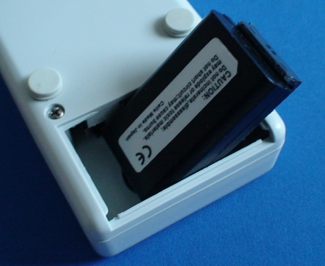

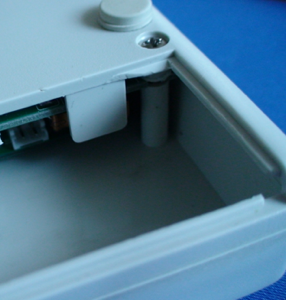

8: Put rechargeable battery.

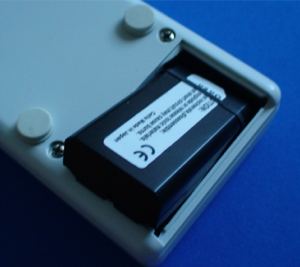

9: Push down battery.

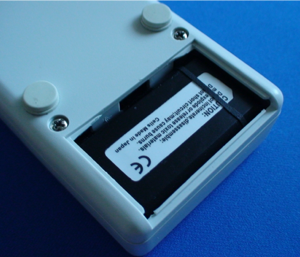

10: Close battery cover.
Finish.
11: Only first time need to do procedure 1 to 5.
After set connector kit need to open battery cover to get back battery for recharge then 6 to 10.
Put tape on battery is easy to fold and get back from case.
12: Recommended to keep original 9V cable connector. You can put back this connector any time to use 9V alkaline battery.
==================================
Operating time:
operating time is depend on how to use and sampling rate setup.
High amplitude and high sampling rate need more power.
Following operating time is standard amplitude and default sampling rate (120 Hz ).
9V alkaline battery operating time: 1.5 to 2.5 hours.
Need to use alkaline battery.
Also can use 9V to 7.6 V NiMH rechargeable battery that use same connector as 9 V alkaline battery. operating time: 1 to 1.5 hours. Charge time 12 to 15 hours.
Rechargeable battery EN-EL1 operating time: 3 to 4 hours. Charge time 2 to 3 hours.
Actual operating time is depend on manufacture company.
In case you have two of this battery then you can keep continue to exchange to use. Because charge time is less than operating time.
