25 Aug 2010
V4.9.9.9
Bluetooth auto re connection procedure changed to following.
V4.9.9.8 and before : Auto re connect Need to click OK, until click OK application is stop.
-->>> V4.9.9.9 and After this version : No need to click OK to re connect. automatically start recording that after re connection.

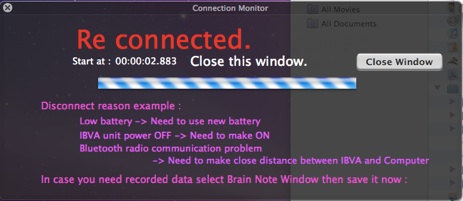

About 30 second after disconnection occurred following window will show up. Then Recording goes to Pause mode.
About 10 second after re - connection following window will show up. Then automatically start continue record at time point Start at...
You can close this window. In case not close then this window shows re connect time point record. In case Disconnection - Re connection occurred again new Connection Monitor window show new start time point.
20 Aug 2010
V4.9.9.8
New IBVA4 / Connection menu :
PreSet Connection
Save Connection to preSet.
This PreSet file goes to
Users / Library / Preferences / com.psychiclab.IBVA.prefs.plist
First time run IBVA application, ask you to make this file.
In case application found this file then try to open from this file.
This new connection future may not work with original IBVA ( serial port connection IBVA )
in case not working correctly with original IBVA then use V4.9.9.7.
Download this version :
http://psychiclab.net/Download/Download.html
IBVA4ufBK.zip
Change battery indicate timing 5 second from 1 second.
Change Battery warning level default to 5.2 V.
Recommended to change this to the battery type which you use.
12 Aug 2010
V4.9.9.7
Fixed “Brain Peak MIDI” Setup popup menu and name field when new open.

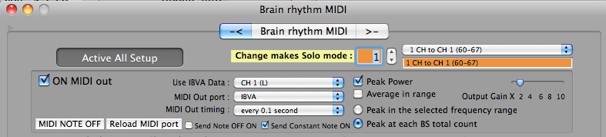

Brain rhythm MIDI : Change send MIDI data :
“Send Constant Note ON” and “Send Note OFF ON”.
default : when select "Send Constant Note On"
// keep continue send On ( note = constant )
--->>> when select "Peak at each BS total count", note = constant, velocity = BS total count X "Output Note Gain";
--->>> when select "Peak in the selected frequency range", note = constant, velocity = peak X "Output Note Gain" : 0..127);
when select "Send Note Off on"
// keep continue send OFF On
--->>> when select "Peak at each BS total count", note = BS total count X "Output Note Gain"; velocity = 0;
--->>> when select "Peak in the selected frequency range", note = "peak up to 0" X "Output Note Gain" : 0..127, velocity = "peak less than 0" : 0..99; ( note= "peak up to 0", velocity = "peak less than 0" )
New QC Plugin for OSX 10.5 and 10.6 :
IBVA4Port plugin : Auto port ON IBVA hardware and send 4 CH Raw data to Network, etc.
IBVA4 SerialPort plugin : Auto Port ON Serial port and send String output.
new Auto Save Function.
1: case run from application.
first time run IBVA then select port ON, "Untitled" brain note window will come up and start to show Raw wave in the Rawave Window.
Default Auto Save time is OFF. try to select 5 minute.
IBVA application try to start Auto Save brain note file to show Save Dialog Window.
Need to type file name, select location and recommended to select "IBVA Reference Data" popup menu.
in case select "IBVA Brain Note" ( this is default setup ) then save time take more longer than select "IBVA Reference Data".
Once setup this, not show Save Dialog Window again, until manually select File / Save As… menu.
2: case run from reference data file.
run from reference data file and/or open reference data file from IBVA application, then automatically setup reference data.
After that make port ON, select menu Recording / Run.
In case Auto Save ON, then save any changes to same reference data file.
make sure create backup file for loaded reference data file in case it is important.
You can save it to different file manually by select File / Save As… menu, "IBVA Reference Data".
================
new File Format Save function with new ICON file and Extension.
Extension : ibvr
---------

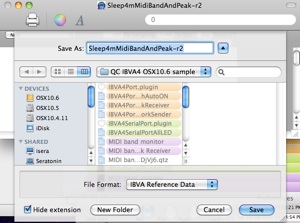

Within Save Dialog, select popup menu File Format : "IBVA Reference Data" save only reference data file.

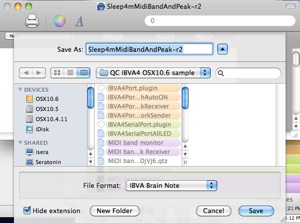

Within Save Dialog, select popup menu File Format : "IBVA Brain Note" save brain data and reference data.
28 July 2010
V4.9.9.1
Fixed “Simple MIDI play” Menu.
25 July 2010
V4.9.8.9
Fixed Applescript activate function when use OSC10.6.
Fixed Brain Note BS rectangle drawing function when use OSC10.6.

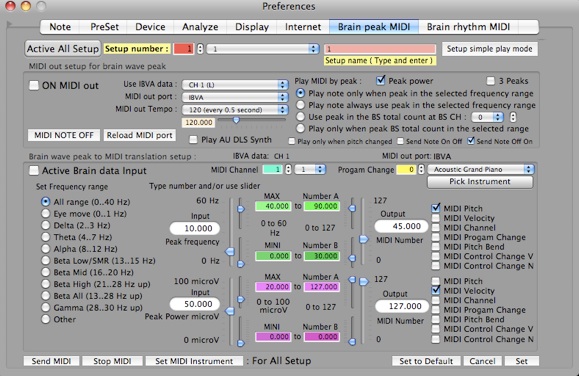

Brain Switch Mixer new function : Epoch setup popup menu for each BS.
BS rectangle graph shows Epoch in the WaterFallBS window when select one channel display.
Brain Switch rectangle graph setup by mouse in the WaterFallBS window.
Fixed Brain peak MIDI and Brain rhythm MIDI : When change setup number.
New menu and user interface for setup number for Brain peak MIDI and Brain rhythm MIDI.
New function : Brain rhythm MIDI : Note constant output.
10 Feb 2010
V4.9.7.1

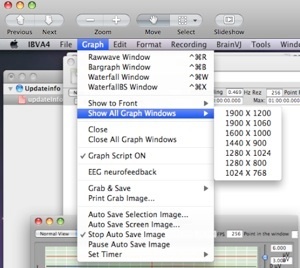

New Graph 1, 2, 3, 4, 5, 6 for OSX10.5.X and OSX10.6.X
Graph / Quartz Composer Graph Window ...
Graph / Quartz Composer Table Graph Window ...
Graph / Quartz Composer Sound Graph Window ...
Graph / Quartz Composer Sound Table Graph Window ...
Now Tiger OSX10.4.11 can access
Graph / Quartz Composer Graph Window ...
Graph / Quartz Composer Table Graph Window ...
29 Jan 2010
V4.9.7.0
Update Menu BrainDJVJ / Sound Control Window
25 Jan 2010
V4.9.6.9
Update Menu Graph / under the “EEG neurofeedback” for Tiger.
19 Jan 2010
V4.9.6.8
EEG Neurofeedback : “Sound for Audio feedback” Load sound can save into Preset and/or Brain Note File.
http://www.Psychiclab.net/IBVA4manual/EEGNeuro.html

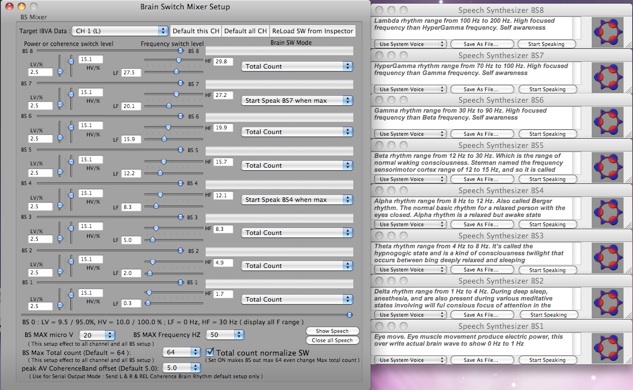

Brain switch mixer setup : Add Speech Synthesizer BS1 to BS8 window for feed back.
Text can change to any (max 1000 words for each BS window) , voice can change to any, can not save it yet.
http://www.Psychiclab.net/IBVA4manual/BSmixer.html
Sound BS Synthesizer : Add Speech Synthesizer BS1 to BS8 window for feed back.
Text can change to any (max 1000 words for each Sound BS window), voice can change to any, can not save it yet.
http://www.Psychiclab.net/IBVA4manual/SoundBSsynthesizer.html
Speech Synthesizer window
http://www.Psychiclab.net/IBVA4manual/SpeechSynthesizer.html
Sound Monitor Control Window setup can save into Preset and/or Brain Note File.
http://www.Psychiclab.net/IBVA4manual/SoundMonitor.html
Open "Select AV" dialog window.
Tiger user : need to select two times this menu to open this window.
13 Jan 2010
V4.9.6.7
“Show Speech” and “Close all Speech” button in the Brain Switch Mixer Setup”.
Speech Synthesizer BS1 to BS8 Window that works with Brain Switch Mixer BS 1 to BS 8.
See manual :
http://www.psychiclab.net/IBVA4manual/BSmixer.html
11 Jan 2010
V4.9.6.6
modify Quartz Composer Graph Window and Sound Graph Window.
When select
File / Load Brain Data From Backup File
then automatically play Backup Brain Data File.
See Installation page of IBVA manual
http://www.psychiclab.net/IBVA4manual/Installation.html
Important IBVA4 system use technique:
6 Oct 2009
V4.9.6.3
modify SetMIDIband // Brain rhythm MIDI:
default : when select "Send Note Off On"
keep continue send Off and On ( note=peak, velocity = 127 )
--->>> when select "Peak at each BS total count", note=BS X 2, velocity = 127;
--->>> when select "Peak in the selected frequency range", note=(int)peak, velocity = 127;
set other : when select "Send Note Off"
keep continue send OFF ( but with (int)FFTbandOutputS[0] ( note=peak, velocity = peak/100 )
--->>> when select "Peak at each BS total count", note=BS X 2, velocity = 0;
--->>> when select "Peak in the selected frequency range", note=(int)peak, velocity = 0..99 (peak/100);
when select : "Peak at each BS total count"
BS 0 .. 64 -->> 0 .. 128 ( peak note )
when select : "Peak in the selected frequency range"
peak Power : 0 .. 128 micro V --->> 0 .. 128 ( peak note )
22 Sep 2009
V4.9.6.2
Bug Fixed:
peak voltage and frequency is not correct when 4 ch mode and open two Rawdata, Bargraph and/or Waterfall window.
16 Sep 2009
V4.9.6.1
update manual.
http://www.psychiclab.net/IBVA4manual/QCgraph.html
http://www.psychiclab.net/IBVA4manual/SoundMonitor.html
14 Sep 2009
V4.9.6.0
add new function to QC graph and Sound QC BS graph
now can open your own QC graph from Menu.
Graph4, Graph5, Graph6 are QC files that is inside of IBVA4 application.
Also those files are inside of QC Graph that is in the IBVA4 application folder.
to use this function no need to use QC Brain Plugin.
31 Aug 2009
V4.9.5.9
add new function to QC graph and Sound QC BS graph
http://www.psychiclab.net/IBVA4manual/SoundMonitor.html
now can make brain VJ notification with brain switch and/or Sound Brain switch.
http://www.psychiclab.net/IBVA4manual/BrainVJNotifications.html
Graph4, GraphBS4, GraphSound4 and GraphSoundBS4 is QC file that is inside of IBVA4 application.
you can modify this file to make own brain wave react animation.
then just put QC file back to IBVA4 application works new animation.
currently need to use same QC file name.
to use this function no need to use QC Brain Plugin.
25 Aug 2009
V4.9.5.8
add new function to QC graph and Sound QC graph
http://www.psychiclab.net/IBVA4manual/QCgraph.html
http://www.psychiclab.net/IBVA4manual/SoundMonitor.html
Graph4, GraphBS4 and GraphSound4 is QC file that is inside of IBVA4 application.
you can modify this file to make own brain wave react animation.
then just put QC file back to IBVA4 application works new animation.
currently need to use same QC file name.
to use this function no need to use QC Brain Plugin.
24 Aug 2009
V4.9.5.7
add
Graph / Quartz Composer Graph Window ...
Graph / Quartz Composer Table Graph Window ...
Graph bar High works with Left and Right Brain power spectrum and Graph bar Width works with Coherence in that frequency.
This function works without use QC Brain Plugin.
You can download “Graph3” QC file that used IBVA4 application.
in case you re-edit “Graph3” QC file then just put it inside of IBVA4 application then you can make own brain wave interactive animation. currently need to use same QC file name.
In the QC patch “Data”, “Spacing”, Scale” and “DisplayMode” link connect to IBVA4 application.
New “Audio Unit Hosting Window”
13 Aug 2009
V4.9.5.6
add custom frequency range function to EEG neurofeedback.
Now Sound Rawave, Sound BarGraph, Sound Waterfall Window can open max 11 windows each and can be save profile ( window size, position, color, setup mode ) into preset file. “File / Save Preset” for save preset file. “File / Load Preset” can reload all window profile.
9 July 2009
V4.9.5.4
Brain wave & Sound wave experience
