6: Raw wave

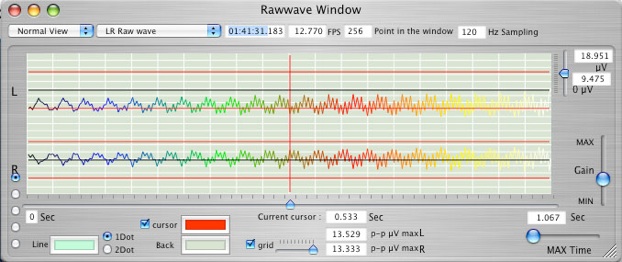

Shows Raw Wave graph window.




Select popup menu to choose brain wave channel and it's display mode.

Top of the window shows the current time point, display FPS, FFT point number and peak to peak power for the top of raw wave.


Select left down corner to change color map used to draw 2 D graph.

Select "1 Dot", "2 Dot" select Line width to draw Raw wave graph.

Select "cursor" shows cursor.

Move bottom slider to move the cursor position and the time field shows it's time.

Move right slider to move the cursor position and the power field shows it's power.


Select "grid" shows grid, and the slider changes the grid size.


Max time slider changes to show Max time.

Max gain slider changes to show Max power.



View popup menu for select view mode.

Normal View

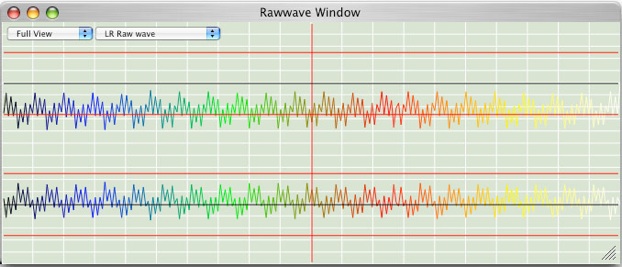

Full View

Alpha 1.0, 0.8, 0.6, 0.4, 0.2

Alpha Animation 1.0 .. 0.0

Alpha Animation 1.0 .. 0.2

Alpha Animation 0.8 .. 0.4





To print image :

select

Graph / Grab & Save -> select grab image

then

Graph / Print Grab Image...



6.1: Select "Graph/Rawwave Window"
