About Battery

Option DC Plug modification for easy charge rechargeable battery, IBVA works more longer time.

How to do modification.

1: Current IBVA User : need to send back unit to Psychic Lab.

User need to pay Total modification cost + S/H for both way.

2: New User : need to order this option when order IBVA.

User need to pay cost of IBVA + Total modification cost + S/H for one way.

Modification time.

Depend on stock of parts, few days to one week.

contact@psychiclab.net

After this modification user can not replace battery.

8 Hour continuously operation : 3000 mAH Li-Ion battery

DC Plug modification + Li-Ion battery + Charger : Total cost : $120

1 year battery warranty. Need to send back IBVA unit for replace battery.

Battery replacement cost : $40 + SH for IBVA unit

Attention :

Need to use charger that included this system. in case mistake to use other device then may cause damage unit. When charge unit need to make Switch OFF and don't connect headset to forehead. Charger works with 100 V to 240 V AC 50 / 60 Hz.

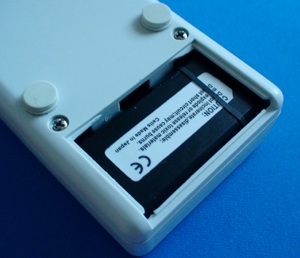

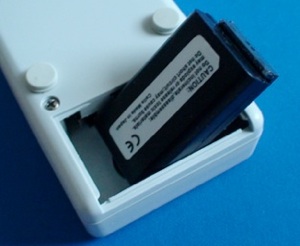

This unit use special battery inside of case. Do not open case. Can not replace battery by end user. In case battery loss happened need to send unit to replace it. Need cost for replace battery and shipping free to do this. Battery is one year warranty after you purchased under standard condition use. Noon standard mean : use inside of crop circle, high zero point energy spot, effect by some kind of psychic power and hyper space operation, effect by UFO.

Any question : contact@psychiclab.net : psychic Lab Inc.

http://www.psychiclab.net

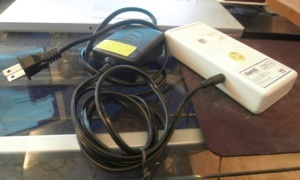

Battery and charger operation.

when charge, Charger LED goes to Red. when finish charge Charger LED goes Green.

Don't power ON IBVA when charge it. mean IBVA's LED ( Blue light ) is not ON when charge.

you can see battery voltage in the control panel.

about 5.5 V is full charge. 5.4 V mean getting low.

you can see this way :

5.5 V : 8 .. 10 Hour.

5.45 V : 4 .. 5 Hour.

5.4 V : 1 Hour. ... need to charge.

IBVA unit say works from 6 V but IBVA's battery work from 5.3 V.

it is because use rechargeable battery and special low energy loss power circuit for long time operation, show battery indicator between 5.5 V .. 5.3 V.

( in case use 9V battery, then 9V, mean many energy loss happened that case )

Default battery waning set to 5.2 V. in case battery goes down to 5.2 V then show dialog message for Low Battery.

in case IBVA box is close to computer and/or other electric device, then can not get good signal from brain.

need to make distance between IBVA box and computer.

also body need to have distance between electric device.

make sure electrode contact is correct. ear clip is correct. ear clip for body ground.

User replaceable battery:

Alkaline 9V battery : 1.5 H operation
