14: Brain switch mixer setup

Example experience how to set brain switch.

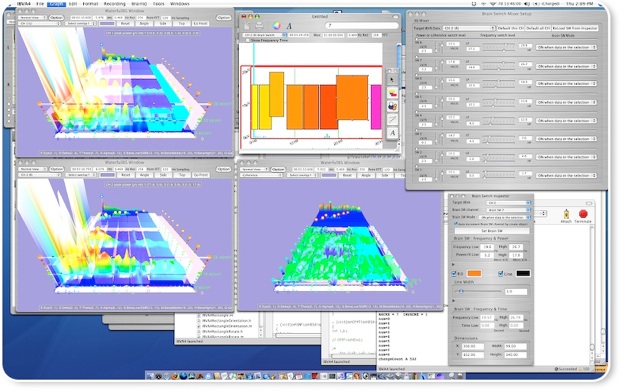

A: open three WaterfallBS window to select CH1, CH2 and coherence

B: open Brain switch mixer window

C: open Inspector window.

D: in the Brain Note document, select pupup menu CH1.

E: move brain rhythm rectangle to try how change happen in the WaterfallBS, Brain switch mixer and Inspector window.

F: Can change BS from Brain switch mixer and/or Inspector by use slider or type number.

G: in the Brain Note document, select pupup menu CH2 then try F.

H: in the Brain Note document, select pupup menu Coherence then try F.

I: ALl setup will store to brain note file and/or preset file in case save preset.

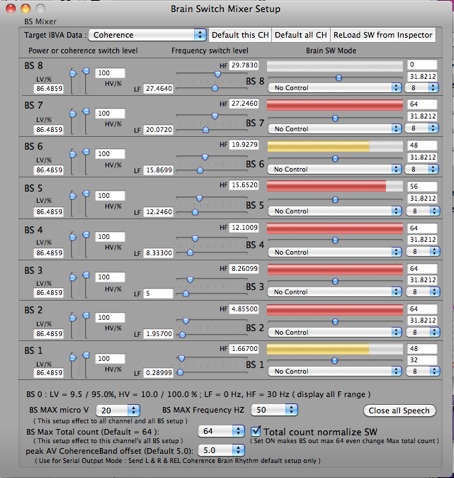

Use for setup Brain Switch.

Eight different Brain Switch can setup for different IBVA Data Channel ( max 8, CH 1 to CH 4 and coherence).

This mean max. 24 different setup in case use 2 CH and coherence IBVA system.

Each BS (Brain Switch) need to set LV, HV, LF and HF number to set power Brain Switch.

For coherence, each BS need to set L%, H%, LF and HF number to set coherence Brain Switch.

In case brain peak goose into this range make switch ON to start switch count.

This switch count number shows as 3 D bar graph and number in the "3 D Water Fall BS Mixer" window.

This number will use for play MIDI sound, control Audio Unit, etc.

Select target IBVA Data, then type number or move slider for each BS.

You can use only one BS or use any of those.

* BS Max power slider value can set 5 to 200 µV with popup menu. Can type number in the power field 0 to 200 µV to work brain switch. This setup effect to all channel and all BS setup.

* BS Max frequency slider value can set 10 to 300 Hz with popup menu. Can type number in the frequency field 0 to 1000 Hz to work brain switch. This setup effect to all channel and all BS setup.

* Use Brain note to set brain switch is max 20 µV and 30 Hz to set. When open Brain Note window with select brain channel then limited happen.

* When set BS over 20 µV and 30 Hz need to set Brain note to "Note" mode. Then type number in the "Brain Switch Mixer"

*When set “BS Max Total Count” then effect to all BS Epoch Number.
*In case set each BS Epoch Number popup menu then effect it to only selected BS.
*Max Epoch is 64 ( default ). This changes can see BS rectangle graph in the WaterfallBS graph. This function can use for BS reaction by time.

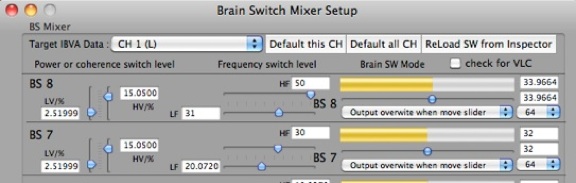

“check for VLC” function.

in case check it, control VLC instead of iTunes.

each BS trigger works around 5 second delay for next trigger event.

also warning slider works as output BS overwrite for test output BS when popup menu select

“Output overwrite when move slider” as default.

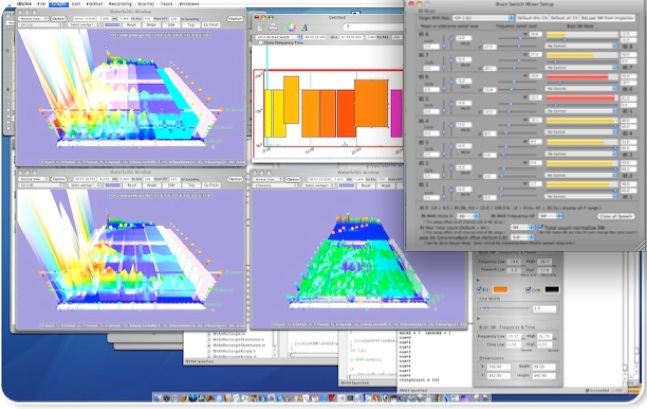

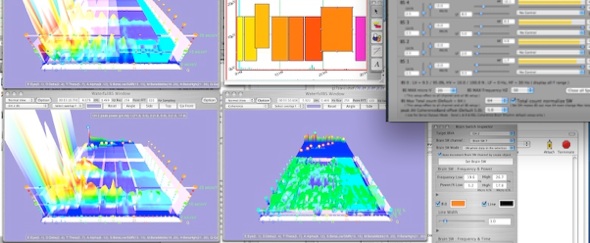

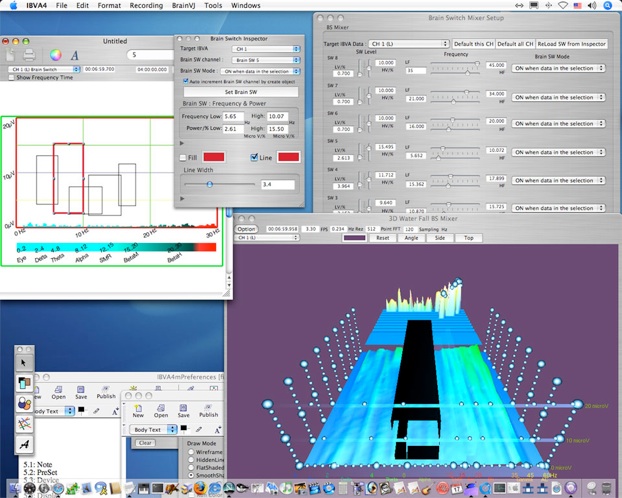

14.2: Sample screen shot with "Brain Note", "Brain Switch Inspector", "3 D Water Fall BS Mixer" and "2 D Bar Graph" window.

This image shows how to make BS with graph editing in the "Brain Note" window.

Then shows that BS attribute in the "Brain Switch Inspector" window.

Then shows that BS attribute in the "Brain Switch Mixer Setup"

Then shows the BS attribute number in the "3 D Water Fall BS Mixer" window.

Currently BS 5 is selected in the "Brain Note" window.

In case move or change this BS in the "Brain Note" window, then all other window's information will change.

2 D graph in the "Brain Note" window is simplify graph as "2 D Bar Graph" window.

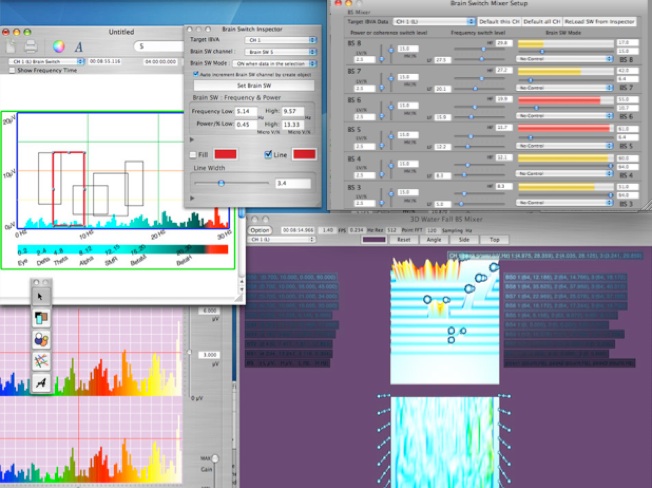

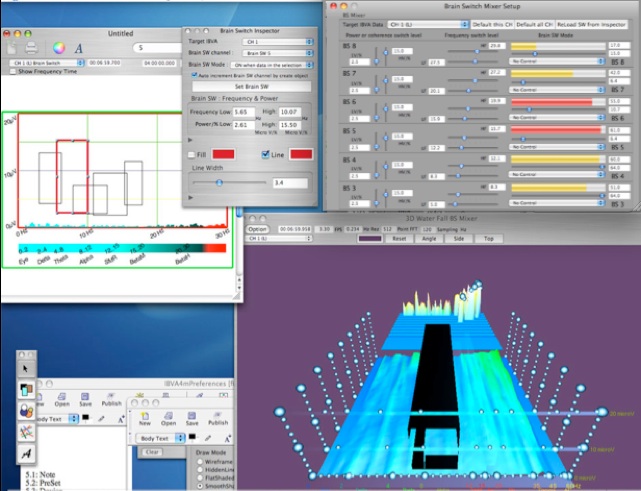

14.3: Sample screen shot with "Brain Note", "Brain Switch Inspector" and "3 D Water Fall BS Mixer" window.

This image shows how to make BS with graph editing in the "Brain Note" window.

Then shows that BS attribute in the "Brain Switch Inspector" window.

Then shows that BS attribute in the "Brain Switch Mixer Setup"

Then shows the BS 3 D flashing object in the "3 D Water Fall BS Mixer" window.

Currently BS5 is selected in the "Brain Note" window.

In case move or change this BS in the "Brain Note" window, then all other window's information will change, and BS 3 D flashing object in the "3 D Water Fall BS Mixer" window will move or change.

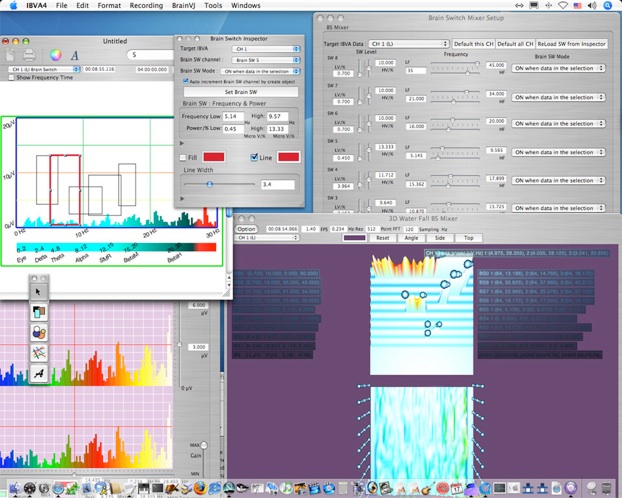

14.4: Sample screen shot with "MIDIChannelLED2", "Brain rhythm Midl and "3 D Water Fall BS Mixer" window.

This image shows how BS count makes MIDI data for connect MAX application "MIDIChannelLED2.

After setup all BS, in the "3 D Water Fall BS Mixer" window shows BS count 3 D Bar movement that depend on how many times switch goose to ON in each BS. Max. BS count is 64.

0 mean no switch was ON in that 3 D Water graph time.

64 mean always switch was ON in that 3 D Water graph time.

This BS count information was translated in the "Brain rhythm MIDI" window.

Each BS count information will translated into different MIDI channel with Pitch and velocity data.

IBVA Data CH 2 BS count data BS 1 to BS 8 will transfer to MIDI CH 8 to 16.

IBVA Data CH 1 BS count data BS 1 to BS 8 will transfer to MIDI CH 1 to 7.

Then "MIDIChannelLED2" MAX application receive this MIDI Data to display LED movement.

Within MAX and/or other application, system can use this BS information to do many thing, such as control Quick Tme movie, composing music, control lighting and Laser system, control Laser hologram image, control 3 D animation, etc.

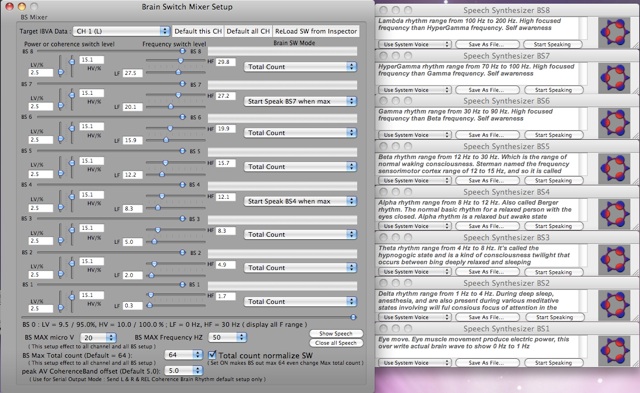

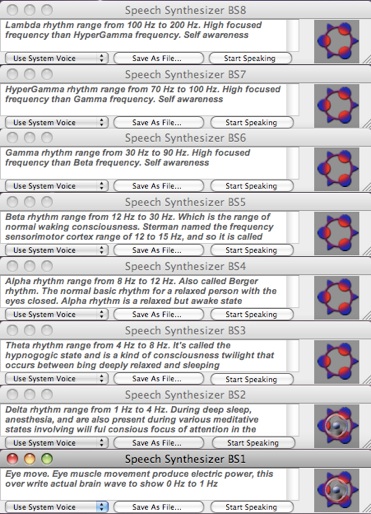

14.5: Sample screen shot with "Speech Synthesizer BS1 to BS8",

This image shows how Speech Synthesizer BS1 to BS8 can access from Brain Switch Mixer Setup.

Right Bottom button “Close all Speech” works for close Speech Synthesizer BS1 to BS8 window.

Select popup menu like “Start Speak BS7 when max” to make start BS7 text speaking when BS is Max.

Default is “Use System Voice” in the each Speech Synthesizer window. Each window can set different Voice and Text then can speak together

you can move, reposition and resize each Speech Synthesizer window.

you can close unused window by click close window button.

Click right Bottom button at BS mixer window “Close all Speech” makes close all window.

Select Menu “BrainDJVJ/Brain Switch Mixer Speech Window...” open all window at default position.

In case Brain Switch Mixer Speech Synthesizer window is some where back side need to do following :

Click “Close all Speech” then Select Menu “BrainDJVJ/Brain Switch Mixer Speech Window...” to show it.

then need Select Menu “BrainDJVJ/Close All Brain Switch Mixer Speech Window” then Select Menu “BrainDJVJ/Brain Switch Mixer Speech Window...” to show it.

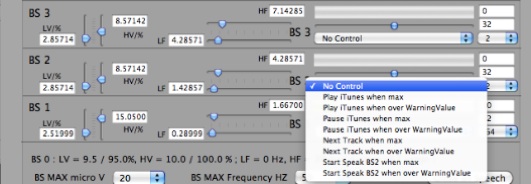

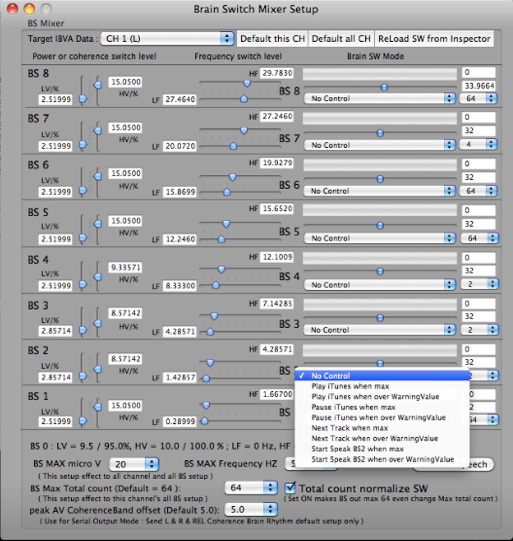

14.6: Sample screen shot with "Brain Switch Mixer Setup"Brain SW Mode control function.

BS1 to BS8 has Brain SW Mode control function popup Menu.

Select this Popup Menu makes trigger control event that use with BS number.

Play iTunes when max : mean when BS number is max = 64 send Play to iTunes.

Play iTunes when over WarningValue : mean when BS number over WarningValue then send Play to iTunes.

Following window setup mean:

BS 3 :

BS trigger is : LV:2.85714 µV, HV:8.57142 µV, LF:4.28571 Hz, HF:7.14285 Hz

WarningValue is 17.1620. When BS 3 is over 17.1620 then send Next Track to iTunes.

BS 2 :

BS trigger is : LV:2.85714 µV, HV:8.57142 µV, LF:1.42857 Hz, HF:4.28571 Hz

WarningValue is 25.3854. When BS 2 is over 25.3854 then send Pause to iTunes.

BS 1 :

BS trigger is : LV:2.51999 µV, HV:15.0500 µV, LF:0.28999 Hz, HF:1.66700 Hz

WarningValue is 37.6888. When BS 1 is over 37.6888 then send Play to iTunes.

“BS Number” VS “Warning Value Number” and it’s setup “ Warning Value Slider”

“Epoch Number Popup Menu”

To control iTunes mean need to send different control to iTunes. In case keep continue send same control then iTunes mode is not change.

Try to make BS 3 ON. Then BS 3 OFF. ( Change brain power or change WarningValue )

BS 3 ON mean BS 3 number need to be over the Warning Value number.

BS 3 OFF mean BS 3 number need to be less than the Warning Value number.

Try to make BS 2 ON. Then BS 2 OFF. ( Change brain power or change WarningValue )

BS 2 ON mean BS 2 number need to be over the Warning Value number.

BS 2 OFF mean BS 2 number need to be less than the Warning Value number.

Try to make BS 1 ON. Then BS 1 OFF. ( Change brain power or change WarningValue )

BS 1 ON mean BS 1 number need to be over the Warning Value number.

BS 1 OFF mean BS 1 number need to be less than the Warning Value number.
