MacBook iTunes ( OSX10.6) : line out connect to MOTU Analogue 3, 4 line input

and

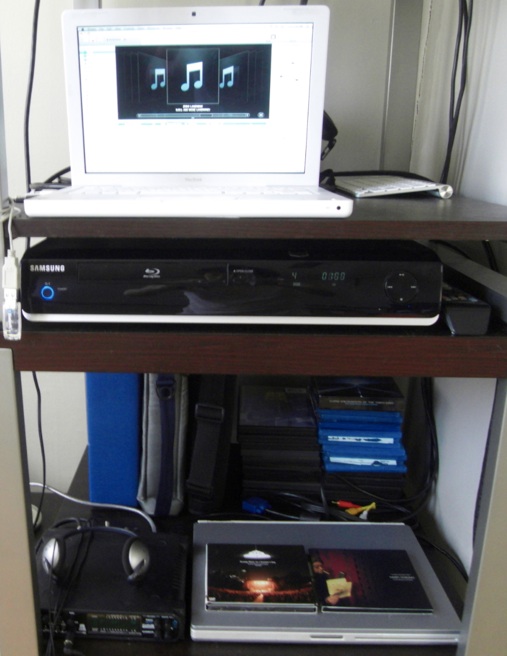

Blue-Ray DVD : digital out connect to MOTU digital input

11” monitor connect to MacBook for show iTunes Visualizer sound reacting animation.

Audio BS mix system setup

MOTU fire wire connect to MacBook Pro OSX 10.5.7.

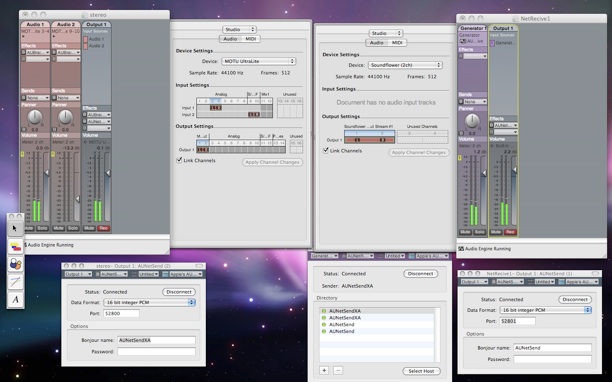

image shot 15” is MacBook Pro "AU Lab NetSend, AUBrainBS1, AUBrainBS2, AUBrainBS3" for MOTU.

and

"AU Lab NetRecive and NetSend" for Soundflower

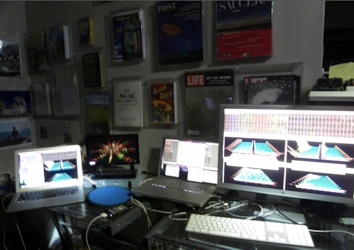

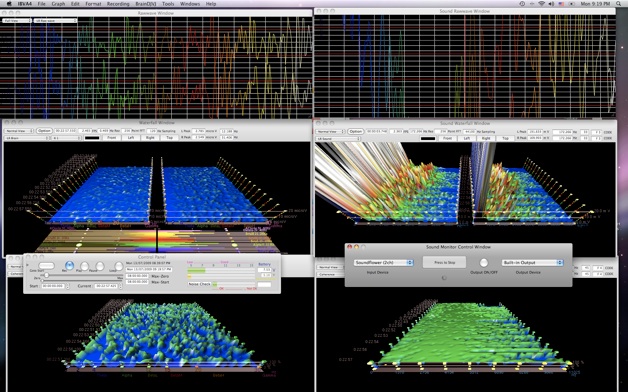

image shot 24” is show Brain wave and Sound wave.

IBVA V4.9.5.4 use for Brainwave visualize and BS control and Sound wave visualize with Sound Monitor Control Window to set input Soundflower.

Mac air use AULAB NetRecive + Soundflower + IBVA  V4.9.5.4 to show Sound wave.

Send sound from MacBook Pro to Mac air.

This way easy to see Sound wave and iTunes Visualizer sound reacting animation together.

Movie file 1:

Movie file 2:

Movie file 3:

YELLOW MAGIC ORCHESTRA : FOCUS, KAI-KOH

NAUGHTY BOYS : 浮気なぼくら

iTunes Visualizer Compositions :  Crop3AudioAuto2 by psychic lab

Download : iTunesVisualizer folder.zip ( Crop1AudioAuto3, Crop2AudioAuto, Crop3AudioAuto2 )

Need to put those QC compositions into

System / Library / Compositions

then run iTunes,

select View / Visualizer / Crop1AudioAuto3 or Crop2AudioAuto or Crop3AudioAuto2

Select View / Show Visualizer

Select View / Full Screen

This QC iTunes Visualizer Compositions Work with OSX 10.5 and 10.6 ( developer Build 10A402a ).
