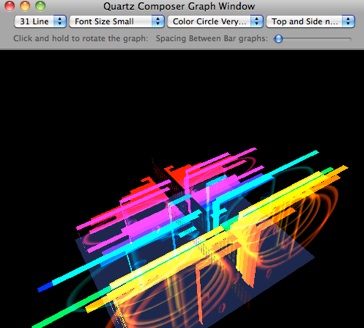

Shows Quartz Composer graph window. BS, 7, 15, 31, 63 Lines.

Image left is CH 1, right is CH 2 the Height will change that depend on power in that frequency.

Width will change that depend on coherence in that frequency.

Display center is Font. Size can set by popup menu.

/ Font Size Large / Font Size Medium / Font Size Small / Font Mini

/ Font Size Large Vertical/ Font Size Medium Vertical/ Font Size Small Vertical/ Font Mini Vertical

Color Circle : set speed of Color Circle

Top and Side no Image : set Image and color for Data graph.

9.5.2: Select "Graph/Quartz Composer Table Graph Window..."

Graph 1, 2, 3, 4, 5, 6 Open QC Graph...

Shows Quartz Composer Table graph window. BS, 7, 15, 31, 63 Lines.

Image left is CH 1, right is CH 2 the Height will change that depend on power in that frequency.

Width will change that depend on coherence in that frequency.

Display center is Font. Size can set by popup menu.

/ Font Size Large / Font Size Medium / Font Size Small / Font Mini

/ Font Size Large Vertical/ Font Size Medium Vertical/ Font Size Small Vertical/ Font Mini Vertical

Color Circle : set speed of Color Circle

Top and Side no Image : set Image and color for Data graph.

When select BS:

Table left is BS number.

next is CH 1 (L) BS number, next is CH 2 (R) BS number : Max is 64 default

Table right is coherence BS number : Max is 64 default

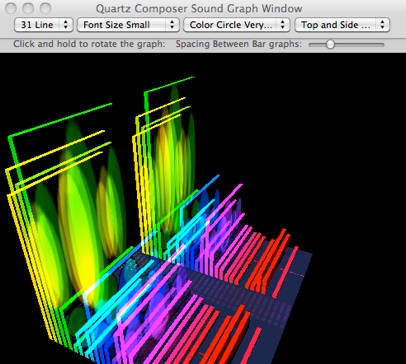

This image is for Quartz Composer Sound Graph Window.

9.5.3: QC files.

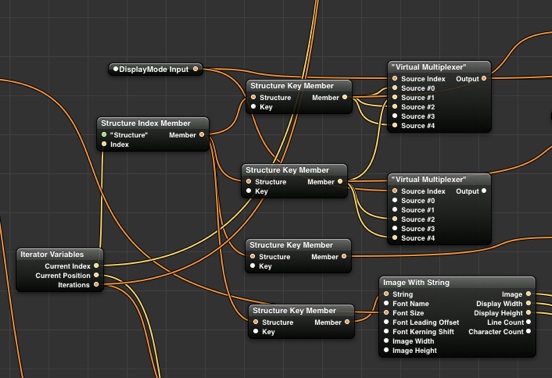

Graph4, Graph5 and Graph6 are QC files that is inside of IBVA4 application.

Also in the IBVA4 / QC Graph folder.

you can modify this file to make own brain wave react animation.

then you can open this QC Graph from IBVA4 application.

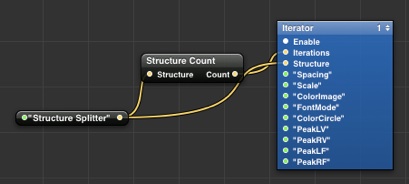

Data, Spacing, Scale, ColorImage, FontMode, ColorCircle, PeakLV, PeakRV, PeakLF, PealRF is data to QC file frim IBVA application. You can make brain and sound interactive QC file that use this data.

==================

This QC file works same way for Brain data and Sound data.
