parts list V0.1
=======
Parts List V0.1 : 4 Nov 2014

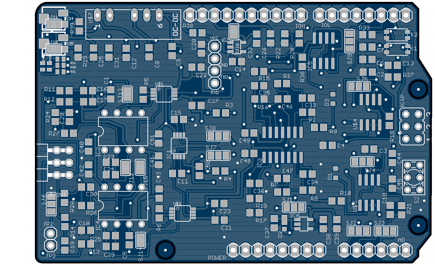

SJ : solder jumper connection : see PCB this way.
L mean connect L and center, R mean connect R and center, NC mean none connection
Up mean connect Up and center
Assembly variant:
http://www.digikey.com : parts ID sample
Part Value Package Library Position (mm) Orientation
SJ1:1-2 :L SJ_2 jumper
default : SJ1:1-2 : +5 V from Arduino, SJ1:2-3 : 5.6..15V Direct input 200mA Max
SJ2:1-2 :L SJ_2 jumper
default : SJ2:1-2 when CH1:AD0, SJ2:2-3 when CH1:AD2
SJ3:1-2 :L SJ_2 jumper
default : SJ3:1-2 when CH2:AD1, SJ3:2-3 when CH2:AD3
SJ4:2-3 :R SJ_2 jumper
default : SJ4:2-3, when use 555 or direct clock input use port D3 : SJ4:1-2
SJ5:2-3 :R SJ_2 jumper
default : SJ5:2-3, when use 555 or direct clock input use port D3 : SJ5:1-2
SJ6:1-2 :Up SJ_2 jumper
default : SJ6:1-2 : center GND, SJ6:2-3 : center test
SJ7:2-3 :L SJ_2 jumper
default : SJ7:2-3 : Ref to GND, SJ7:1-2 : Ref to Ref V
SJ8:2-3 :L SJ_2 jumper
default : SJ8:2-3 : Ref to GND, SJ8:1-2 : Ref to Ref V
SJ9: NC SJ_2 jumper
default : SJ9:NC, when use 555 : SJ9:1-2, when direct clock input use port D3 : SJ9:2-3
SJ10, SJ11 jumper
default : ON
SJ12 jumper
default : OFF
when not use Option A then need to ON
SJ13 jumper
default : OFF
when not use Option A then need to ON
SJ14 jumper
default : OFF
when not use Option A then need to ON
SJ15 jumper
default : OFF
when not use Option A then need to ON
SJ16 jumper
default : ON
main board ( CH 1, CH 2 ) : ON
additional board ( CH 3, CH 4 ) : OFF
JP2 1X01 pinhead
Non
default : not connect, when use test OSC : connect test OSC between JP2-JP3
JP3 1X01 pinhead
Non
C1 470pF ５％ C0805 rcl
2
470pF
1276-1121-1-ND
< C1, 5 >
C2 0.1µF C0805 rcl
18
0.1µF
311-1361-1-ND
< C2, 3, 4, 10, 12, 21, 22, 23, 27, 31, 40, 41, 42, 43, 48, 49, 50 51 >
C3 0.1µF C0805 rcl
C4 0.1µF C0805 rcl
C5 470pF C0805 rcl
C6 2.7nF 50V 5% (20KHz) 30ppm/degC C0805 rcl
2
2.7nF
445-11340-1-ND
< C6, 45 >
C8 10µF 25V 10% C0805 rcl
6
10µF
1276-2890-1-ND
< C8, 9, 14, 20, 25, 26 >
C9 10µF C0805 rcl
C10 0.1µF C0805 rcl
C11 1µF 50V 10% C0805 rcl
2
1µF
1276-1029-1-ND
< C11, 15 >
C12 0.1µF C0805 rcl
C13 15nF (+2.7nF=30Hz) 50V 5% 30ppm/degC C0805 rcl
2
15nF
445-6948-1-ND
< C13, 44 >
C14 10µF C0805 rcl
C15 1µF C0805 rcl
C16 1nF 5% C0805 rcl
4
1nF
399-1136-1-ND
< C16, 17, 18, 19 >
C17 1nF C0805 rcl
C18 1nF C0805 rcl
C19 1nF C0805 rcl
C20 10µF C0805 rcl
C21 0.1µF C0805 rcl
C22 0.1µF C0805 rcl
C23 0.1µF C0805 rcl
C25 10µF C0805 rcl
C26 10µF C0805 rcl
C27 0.1µF C0805 rcl
C31 0.1µF C0805 rcl
C32 0.01µF 10% C0805 rcl
1
0.01µF
490-1664-1-ND
< C32 >
C33 47pF 5% C0805 rcl
4
47pF
709-1175-1-ND
< C33, 34, 35, 36 >
C34 47pF C0805 rcl
C35 47pF C0805 rcl
C36 47pF C0805 rcl
C40 0.1µF C0805 rcl
C41 0.1µF C0805 rcl
C42 0.1µF C0805 rcl
C43 0.1µF C0805 rcl
C44 15nF (+2.7nF = 3KHz) 50V 5% 30ppm/degC C0805 rcl
C45 2.7nF 50V 5% (20KHz) 30ppm/degC C0805 rcl
C48 0.1µF C0805 rcl
C49 0.1µF C0805 rcl
C50 0.1µF C0805 rcl
C51 0.1µF C0805 rcl
R1 1M 0.1% 25ppm/degC 0.1W R0805 rcl
8
1M
985-1364-1-ND
< R1, 2, 3, 4, 7, 8, 16, 19 >
R2 1M 0.1% 25ppm/degC 0.1W R0805 rcl
R3 1M 0.1% 25ppm/degC 0.1W R0805 rcl
R4 1M 0.1% 25ppm/degC 0.1W R0805 rcl
R5 200 0.1% 25ppm/degC 0.1W R0805 rcl
2
200 ohm
RG20P200BCT-ND
< R5, 6 >
R6 200 0.1% 25ppm/degC 0.1W R0805 rcl
R7 1M 0.1% 25ppm/degC 0.1W R0805 rcl
R8 1M 0.1% 25ppm/degC 0.1W R0805 rcl
R9 4.7K 1% 0.25W R0805 rcl
6
4.7K
311-4.70KCRCT-ND
< R9, 10, 11, 12, 13, 14 >
R10 4.7K 1% 0.25W R0805 rcl
R11 4.7K 1% 0.25W R0805 rcl
R12 4.7K 1% 0.25W R0805 rcl
R13 4.7K 1% 0.25W R0805 rcl
R14 4.7K 1% 0.25W R0805 rcl
R15 4.02K 0.1% 25ppm/degC 0.125W R0805 rcl
2
4.02K
RG20P4.02KBCT-ND
< R15, 17 >
R16 1M 0.1% 25ppm/degC 0.1W R0805 rcl
R17 4.02K 0.1% 25ppm/degC 0.125W R0805 rcl
R18 470 5% 0.25W R0805 rcl
4
470 ohm
P470ACT-ND
< R18, 20, 21, 38 >
R19 1M 0.1% 25ppm/degC 0.1W R0805 rcl
R20 470 5% 0.25W R0805 rcl
when use JY-MCU Bluetooth V1.0.6 then 0 ohm.
R21 470 5% 0.25W R0805 rcl
R22 1K 1% 0.25W R0805 rcl
2
1K
311-1.00KCRCT-ND
< R22, 33 >. when use JY-MCU Bluetooth V1.0.6 then no need R22.
R29 2.15K 0.1% 25ppm/degC 0.125W R0805 rcl
2
2.15K
< R29 & R34: 1-3 >
R33 1K 1% 0.25W R0805 rcl
R34 SJ11 ON and put 2.15K at 1-3
R35 SJ10 ON
R38 470 5% 0.25W R0805 rcl
R39 4.3K 0.1% 25ppm/degC 0.125W R0805 rcl
1
4.3K
<R39>
SJ10 & SJ11 ON : set 1.25V offset,
default : SJ10 & SJ11 ON : set 1.25V offset,
0 ohm at C46 & C47 for no DC cut
2
0 ohm
311-0.0ARCT-ND
default : 0 ohm at C46 & C47 for no DC cut
( R 2.15K at R34: 2-1, R 0 ohm at R34:2-3 & R35:2-3 : set 2.5V offset )
U$1 AD8422ARMZ MSOP MKH
2
AD8422ARMZ
AD8422ARMZ-ND
< U$1, U$2 >
U$2 AD8422ARMZ MSOP MKH
AD8422ARMZ
IC1 OP2177ARMZ MSOP AD
1
OP2177ARMZ
OP2177ARMZ-ND
< IC1 >
IC3 OP4177ARZ SO14 AD
1
OP4177ARZ
OP4177ARZ-ND
< IC3 >
U$4 MAX7480ESA+ MAX7480 MKH
2
MAX7480ESA+
MAX7480ESA+-ND
< U$4, U$5 >
U$5 MAX7480ESA+ MAX7480 MKH
MAX7480ESA+
IC7 LT1761ES5-5 SOT23-5 v-reg-micrel LINEAR TEC
1
LT1761ES5-5
LT1761ES5-5#TRPBFCT-ND
< IC7 >
U$7 DC-DC +-12V, RB-0512D/P MKH Recom Power
1
RB-0512D/P
945-1790-5-ND
< U$7 >
D1 ( UDZS5.1B ) SMB 5.1V zener diode ROHM
2
UDZSTE-175.1B : ( UDZS5.1B ) 5.1 V 2% 200mW 80 ohm, UMD2
UDZSTE-175.1BCT-ND
< D1, D3 >
D3 ( UDZS5.1B ) SMB 5.1V zener diode ROHM
UDZSTE-175.1B : ( UDZS5.1B ) 5.1 V 2% 200mW 80 ohm, UMD2
UDZSTE-175.1BCT-ND
S2 DPDT IS-2235 switch-misc
1
JS202011CQN
401-2001-ND
VCC, GND, TXD, RXD 4 pin L-pinhead for BlueTooth
1
4 pin L plug
use for VCC, GND, TXD, RXD
IOH 1X10 pinhead Useconn Electronics
1
PINHD-1X10
10X1F-H8.5
IOL 1X08 pinhead Useconn Electronics
2
PINHD-1X8
8X1F-H8.5
POWER 1X08 pinhead Useconn Electronics
PINHD-1X8
8X1F-H8.5
AD 1X06 pinhead Useconn Electronics
1
PINHD-1X6
6X1F-H8.5
LR-IN1 2X03/90 pinhead
1
2X03 L pinhead
L & R brain wave input
ICSP JP3Q jumper
3X2 M
1
SPI connection
Option A
IC2, IC4 : OPA2111KP DIL08 BB / TI : 296-12983-5-ND X 2
R23, R24, R25, R26 : 100K 0.1% 25ppm/degC 0.125W : P100KDACT-ND X 4
R27, R28 : 2K 0.1% 25ppm/degC 0.125W : P2.0KDACT-ND X 2
C24, C28, C29, C30 : 470pF : 1276-1300-1-ND x 4

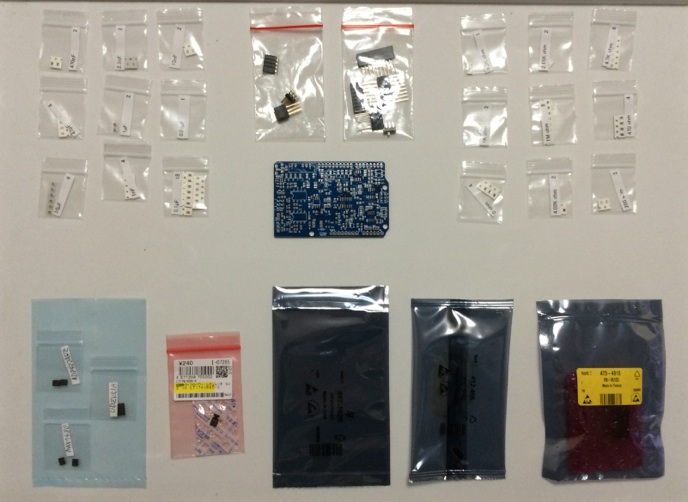

Total : SJ X 16, C X 45, R X 35, Silicon chip X 12, SW X 1, Connector X 7,
==================== assembled with Option A ============================================
============================================================
Arduino and Bluetooth interface
Arduino UNO :
1050-1024-ND
ARDUINO UNO BOARD REV3
JY-MCU Bluetooth Wireless Serial Port Module for Arduino (Works with Official Arduino Boards)
http://www.dx.com/p/jy-mcu-arduino-bluetooth-wireless-serial-port-module-104299#.VIc2LiifP8E
how to setup Bluetooth interface :
============================================================
Header pin, etc.
==
http://tinkersphere.com/arduino/335-arduino-stackable-header-pin-kit-uno-r3.html
: $1.99
Arduino Stackable Header Pin Kit - UNO R3
The Arduino Stackable Header Pin Kit, 2 8-Pin Stackable Headers, 1 6-pin Stackable Header and 1 10-pin Stackable Header
============
http://akizukidenshi.com/catalog/g/gC-04045/
[C-04045] ピンソケット １ｘ６ （ ６Ｐ） リード長１０ｍｍ X 2 ( one for Bluetooth )
[FH105-1x6SG/RH]
FH105 - 1 x XX SG : Useconn Electronics Ltd.
30 yen
http://akizukidenshi.com/catalog/g/gC-04046/
[C-04046] ピンソケット １ｘ８ （ ８Ｐ） リード長１０ｍｍ X 2
[FH105-1x8SG/RH]
40 yen
http://akizukidenshi.com/catalog/g/gC-07199/
[C-07199] ピンソケット １ｘ１０ （１０Ｐ） リード長１０ｍｍ X 1
[FH105-1x10SG]
50 yen
http://akizukidenshi.com/catalog/g/gC-02482/
[C-02482] 連結ピンソケット ２×５ （１０Ｐ）
50 yen
http://akizukidenshi.com/catalog/g/gC-00148/
[C-00148] ピンヘッダ （オスＬ型） ２×４０ （８０Ｐ）
[PH-2x40RG]
100 yen
for electrode cable
http://akizukidenshi.com/catalog/g/gC-00168/
[C-00168] ピンソケット （メス） ２×５ （１０Ｐ）
50 yen
for power connector
http://akizukidenshi.com/catalog/g/gP-06687/
[P-06687] ２．１ｍｍＤＣプラグ付バッテリースナップ（縦型 硬質プラスチック製
[FIT0043]
130 yen
==================
parts list : Default is included Option A
