brain-duino in the Box setup
Setup instruction
brain-duino BOX
battery charge cable
IBVA V5 DVD
HeadPad and cable
also you can use BrainBay for PC.
http://www.psychiclab.net/IBVA/BrainBay.html
use with BrainBay, need to setup sampling frequency 256 Hz. need to change Arduino code for this. current version of BrainBay PC for IBVA works with only 256 Hz sampling.
Application side setup :
need to setup Bluetooth connection as followings for Mac.
need to Make ON brain-duino Box.
this case Bluetooth port name is “brain-duinoB”
http://www.psychiclab.net/IBVAmanual/BluetoothSetup.html
then need to setup as followings. after setup this brain-duino works similar as IBVA, brain-duino works with IBVA application.

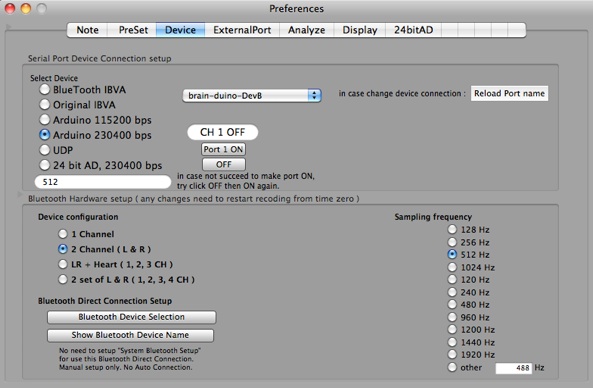

in the Preferences setup, Select Device “Arduino 230400 bps “
select port name : “brain-duino-DevB”
then Click “Port 1 ON” start to show brain wave.
this cable is not for charge battery. only use when program Arduino in case you like to do so.

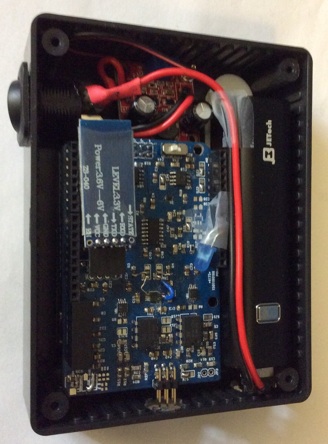

when re-program Arduino need to open Top cover then need to remove brain-duino board and/or BlueTooth interface. then connect USB cable for re-program Arduino.
after program Arduino, need to put back brain-duino board and/or Bleutooth interface.
5: left side hole : ( not in this photo )
in case your box has left side hole, it is for Arduino program USB port.
need to connect cable like this. this cable is not included.
set cable side to left. put ear clip to left ear.
you need to use your own headband to hold headpad.
in case use electrode DBF3D77 or similar electrode then no need to hold with headband.
about electrode cable :
company sale electrode: DBF3D77
in USA :
http://www.multibiosensors.com/
in EU :
http://www.medcat.nl/supplies/En/MBS.htm
also you can use different type of electrode. IBVA and brain-duino design is works with that way.

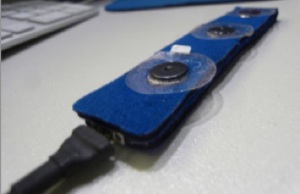

you need to put this electrode to cable electrode holder snap.
usually professional EEG device, people use new electrode for new client / subject.
not use old electrode, old electrode mean after one time used electrode.
IBVA and brain-duino works similar, very low noise amplifier with different electrode condition.
so, can use old / dry electrode also.
this photo headset cable set has a “ear clip” for body ground. use total 3 electrode.
4: center hole:
center hole connect headset and cable
cable has 6P connector in one side. It’s has mark, put mark down connect to the Box.

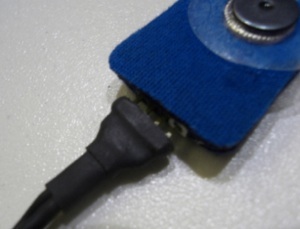

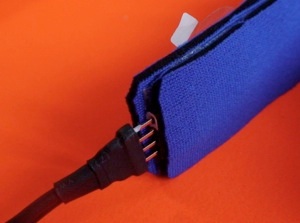

other side of cable has 4P connector. It’s has mark. connect mark side together to Headpad.
when charge battery LED show Red color.
Done charge show Green color.
connect this cable only when charge battery.
after changed disconnect it.
when operate Box show Blue color.
to operate Box, need to make ON SW. in case still not ON then need to push top side Power LED indicator option switch also.
2: 2 hole is top cover of box
one hole for switch set high cut frequency :
default setup is 32 Hz to 40 Hz. ( left )
set other way is 200 Hz ( right )
other hole is Power LED indicator option switch.
3: 2 or 3 hole is front side
right side hole:

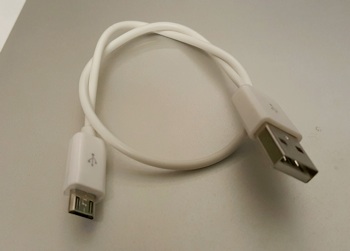

right side hole for connect micro USB cable. This cable connect USB port of 5V DC adapter or computer USB port to charge battery.

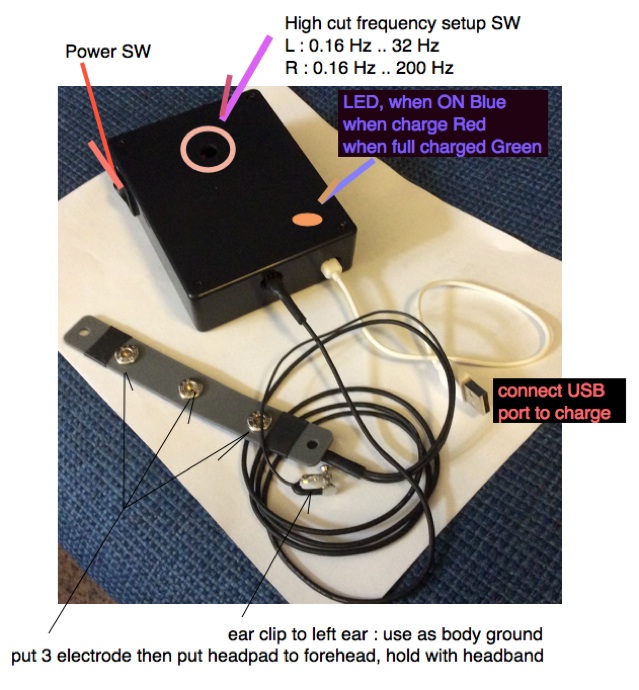

1 : put box like photo
power switch is left side. Power ON / OFF.
